SIP-S03T, Ceiling, Indoor, 30W, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S03T
• Order(MOQ):1
• Payment:T/T,Western Union, Paypal
• Product Origin:China
• Color:White
• Lead Time：1 Week
• Weight：1.95

Product Description

Tonmind SIP-S03T 30W SIP Onvif Ceiling Speaker, designed to deliver exceptional audio performance in indoor environments such as schools, office buildings, malls, and churches. With its versatile features, this speaker provides seamless integration with SIP & Onvif. Equipped with pre-recorded messages, alarm input, and audio input, it offers flexible control options. Its HTTP control feature enables convenient management. The Onvif speaker delivers high-quality sound with its 30W amplifier and utilizes advanced technologies including AEC, AGC, and ANR, ensure crystal-clear audio transmission.

SIP Ceiling Speaker Feature

• Compatible with VoIP, SIP Devices (IPPBX, IP Phone) via SIP

• Compatible with IP Camera VMS/NVR via ONVIF

• Support Pre-recorded Messages

• Support HTTP URL, Alarm in, Audio in

• 48K OPUS Audio Codec, AEC, AGC, ANR

• 30W Amplifier, PoE Power Supply

• Transmit Excellent Sound for Music and Announcement

Specification

Audio
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Buill-in MIC	NO
Speaker
Max SPL	110dB
Frequency Response	93Hz ~ 20KHz
Frequency  Range	500-2KHZ      +-10dB 400-12KHZ    +-20dB
Harmonic Distortion	0.1@1kHz
Signal to Noise Ratio	91dB
Network
Security	Password protection, IP address filtering, Digest authentication, User access log
Network Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	10/100 Base-TX, RJ45
VoIP	Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier	Built-in 30W Amplifier
General
Material	Metal
Rate Power	30W
Power Supply	PoE or DC 12V/24V
Installation	In Ceiling
Dimensions	265 x 105 mm
Weight	1.95 KG
Languages	English
Warranty	2 years
Package Includes	Network Ceiling Speaker  Quick Start Guide

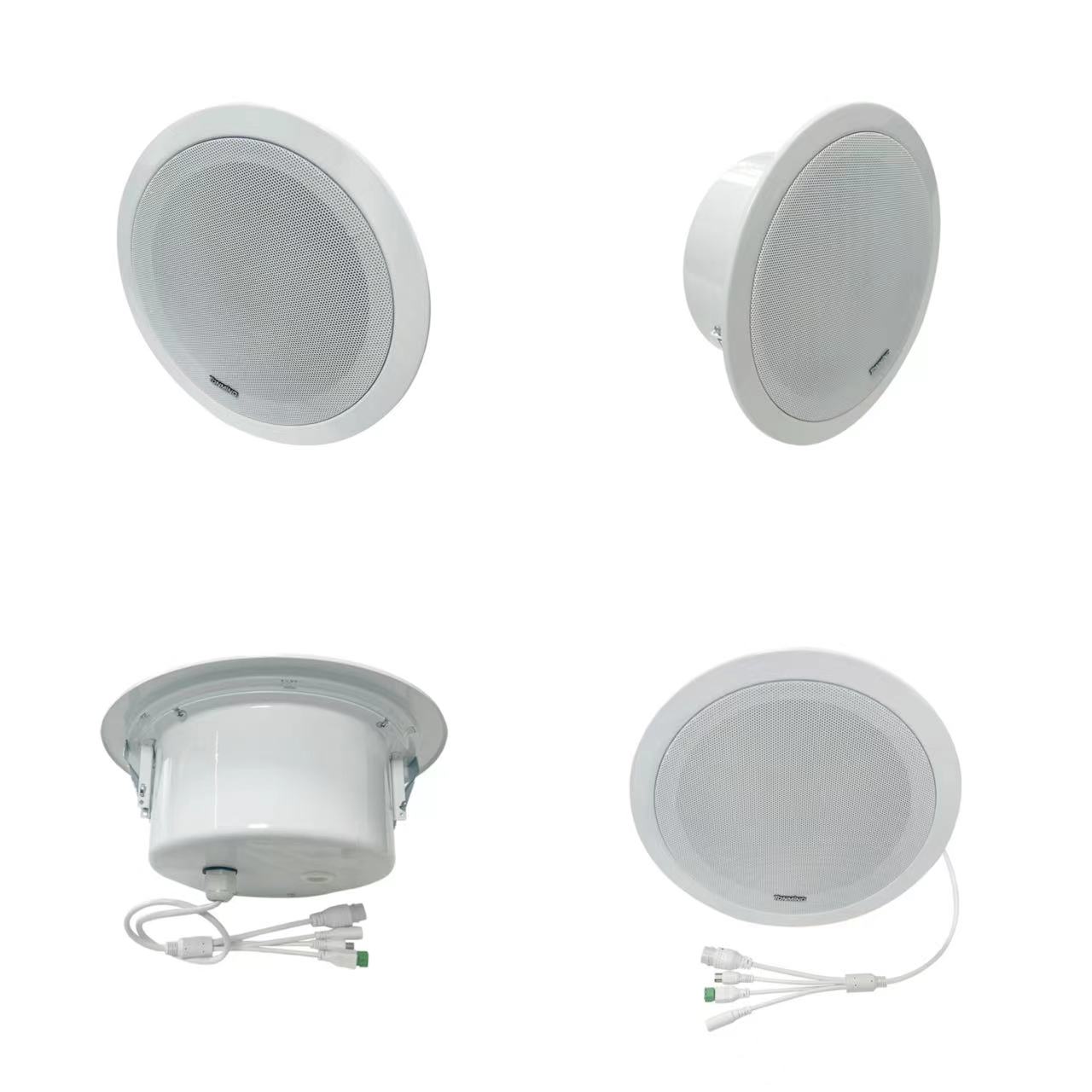

Product Image
