Introduction
The V680 Series Switches are cost effective high performance switches for SDN/Openflow applications. It is designed based on Centec’s Ethernet switching silicon CTC8180. Leveraging OVS, the V680 fully supports Openflow v1.3. With the powerful full-field matching ability and flexible editing capability, it is widely used in applications like radio/ television broadcast.
V680 support 10G/25G/40G/100G ports.
The V680 Series Switches currently includes following configurations: V680-32C, V680-48Y8C, V680-48X8C, V680-24Y4C, V680-48X6Q, V680-24Q.
Features
* Standard 1RU pizza-box switch
* Total 6.4Tbps forwarding capacity
* Low power consumption
* OpenFlow specification 1.3.x/1.4.x
* Up to 8000 wildcard match flows with complete match field and stats
* L2 to L4 complete matching fields
* Per flow multiple actions
* L2 GRE tunnel/VXLAN tunnel/NVGRE tunnel
* MPLS L2 VPN/Flex MPLS
* QinQ
* Meter table with up to 1000 meter ID.
* Group(all/select/indirect/fast failover)
* Queue
* Hybrid Ovs bond: set openflow enable on linkagg port
* Support traffic masking
* Support port isolate
* Support IPFIX
Highlights
Based on High Performance Chip
V680 series routing switches, which are designed based on Ethernet switching chip CTC8180. The CTC8180 is high-performance chip provides 3.2Tbps I/O bandwidth and 3.2T core bandwidth.
Varied Port Types
Support 10G/ 25G / 40G / 100G ports to meet different network requirements.
System Design for Green and Energy Saving
Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving network.
High Reliability
V680 are powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy；
Fans support 2+2 redundancy；
Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.
Openflow Features
V680 fully supports Openflow v1.3 with the powerful full-field matching ability and flexible editing capability. It supports L2 to L4 complete matching fields and per-flow multiple actions.
Hardware specification
| Items | V680 -32C | V680 -24Q | V680 -48X6Q | V680 -48Y8C | V680 -48X8C | V680 -24Y4C | |
| Size (H×W×D) | 4.4 x 44.2 x 47.1 cm (1.73 x 17.4 x 18.54 in.) | 4.4 x 44.2 x 45.1 cm (1.73 x 17.4 x 17.75 in.) | |||||
| Weight | 8.8KG | 9.0KG | 8.15KG | 8.85KG | 8.85KG | 8.35KG | |
| RS-232 Serial Ports | 1 RJ-45 port located at the left side of front panel | 1 RJ-45 port located at the left side of rear panel | |||||
| Management Ports | 1 RJ-45 out-of-band management port located at the left side of front panel | 1 RJ-45 out-of-band management port located at the left side of rear panel | |||||
| USB Ports | 1 Type-A USB port located at the left side of front panel | Not Support | 1 Type-A USB port located at the left side of Rear panel | ||||
| 10/100/1000Mb Base-T Ports | – | – | – | – | – | – | |
| 100/1000Mb Base-T PoE Ports | – | – | – | – | – | – | |
| 1Gb SFP Ports | – | – | – | – | – | – | |
| 10GbE SFP+ Ports | – | – | 48 | – | 48 | – | |
| 25GbE SFP28 Ports | – | – | – | 48 | – | 24 | |
| 40GbE QSFP+ Ports | – | 16 | 6 | – | – | – | |
| 100GbE QSFP28 Ports | 32 | 8 | – | 8 | 8 | 4 | |
| Latency | 700 ns | ||||||
| CPU | Dual core, ARM A53 | ||||||
| Memory | 2GB | ||||||
| Flash | 8GB | ||||||
| Packet Buffer Memory | 36MB | ||||||
| Power supply | AC | Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz | |||||
| DC | Maximum Voltage: -40 ~ -72V | ||||||
| HVDC | Maximum Voltage: 180 ~ 300V | ||||||
| Hot-swap Power Supplies | 2 (1+1 redundant) | ||||||
| Airflow Option | Front-to-Rear Airflow | ||||||
| Fans Quantity | 4 | ||||||
| Typical Power Draw | 172W | 112W | 100W | 125W | 125W | 95W | |
| Max Power Draw | 224W | 171W | 145W | 160W | 160W | 130W | |
| PoE Power Budget | – | – | – | – | – | – | |
| MTBF(Hour) | >158045 | >70080 | >70080 | >162213 | >162213 | >198000 | |
| MTBF(Year) | >18.0 | >8.0 | >8.0 | >18.5 | >18.5 | >22.6 | |
Performance specifications
| Performance | V680 -32C | V680 -24Q | V680 -48X6Q | V680 -48Y8C | V680 -48X8C | V680 -24Y4C | |
| Line speed forwarding | Switch capability | 6.4 Tbps | 1.92 Tbps | 1.44 Tbps | 4 Tbps | 2.56 Tbps | 2 Tbps |
| Throughput | 3571 Mpps | 1428 Mpps | 1071.4 Mpps | 2976 Mpps | 1905 Mpps | 1488 Mpps | |
Software specification
| Features | V680 | ||
| Class | Sub Class | default | ipv6 |
| Jumbo frame | Maximum jumbo frame size | 9600 | |
| Flow | Maximum flow number | 8000 | 4000 |
| Maximum flow stats number | 8000 | 4000 | |
| Mac extend flow-table | 20000 | 20000 | |
| Group | Group-all number | 2000 | 160 |
| Group-all-max-per-group-bucket number | 64 | 64 | |
| Group-all-max-per-bucket-action number | 13 | 13 | |
| Group-select number | 63 | 63 | |
| Group-select-max-per-group-bucket number | 16 | 16 | |
| Group-select-max-per-bucket-action number | 13 | 13 | |
| Group-ff number | 63 | 63 | |
| Group-ff–max-per-group-bucket number | 16 | 16 | |
| Group-ff-max-per-bucket-action number | 13 | 13 | |
| Group-indirect number | 63 | 63 | |
| Group-indirect-max-per-group-bucket number | 1 | 1 | |
| Group-indirect-max-per-bucket-action number | 13 | 13 | |
| Tunnel | L2GRE-tunnel number | 200 | 200 |
| NVGRE-tunnel number | 200 | 200 | |
| VXLAN-tunnel number | 200 | 200 | |
| local-vtep number | 4 | 4 | |
| Meter | Meter-Max number | 1000 | 1000 |
| Meter-Max-Stats number | 1000 | 1000 | |
| Meter-Max-Band number | 180 | 180 | |
| Meter-Max-Burst | 52400 | 52400 | |
| MPLS | Valid range for match MPLS label | 16-1048575 | 16-1048575 |
| Valid range for edit MPLS label | 1-1048575 | 1-1048575 | |
| Link aggregation | Number of link aggregation | 55 | 55 |
| Maxinum Linkagg port number to enable Openflow | 55 | 55 | |
| VLAN | VLAN forwarding instances | 4094 | 4094 |
| VLAN interface | 256 | 256 | |
| Protected VLAN | 50 | 50 | |
| Unicast MAC | MAC address capacity | 52768 | 32768 |
| Static MAC address | 1024 | 1024 | |
| Dynamic MAC address | 52768 | 32768 | |
| Blackhole MAC address capacity （MAC Filter entries） | 128 | 128 | |
| ARP | ARP Capacity （IPv4 host routes） | 4096 | 4096 |
| IPv4 | FIB | 8192 | 8192 |
| IPv4 ECMP groups | 176 | 176 | |
| ECMP Member | 64 | 64 | |
| L2 Multicast group members | 2048 | 2048 | |
| L2 Multicast entries | 2048 | 2048 | |
| ACL | Ingress ACL entries | 100 | 100 |
| Egress ACL entries | 0 | 0 | |
| System configurable ACL | 4096 | 4096 | |
| System configurable ACE | 8192 | 8192 | |
| OSPF | OSPF network | 32 | 32 |
| OSPF area range | 32 | 32 | |
| OSPF area authentication | 3000 | 3000 | |
| QOS | Drop profile | 28 | 28 |
| Queue shape profile | 59 | 59 | |
| Port shape profile | 63 | 63 | |
| Port policer | 63 | 63 | |
| IPSLA | IP sla entries | 255 | 255 |
| Track | Track objects | 500 | 500 |
| IPFIX | Ingress IPFIX entries | 65536 | 65536 |
| Ingress IPFIX resource | 256 | 256 | |
Environment Specifications
| Description | Specification |
| Operating Temperature | 0 to 45 ºC |
| Storage Temperature | -40 to 70 ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
Safety and compliance
| Product Number | V680-48Y8C V680-48X8C V680-32C V680-24Y4C | V680-48X6Q V680-24Q |
| Certifications | CQC CE-LVD CE-EMC FCC FCC ICES ETL | CE-LVD CE-EMC FCC FCC ICES ETL |
| Safety | ETL: UL 62368-1:2014 Ed.2CB: IEC 62368-1:2014CE-LVD: EN 62368-1: 2020+A11:2020EN62479:2010CQC: GB4943.1-2011GB/T9254-2021 | ETL: UL 62368-1:2014 Ed.2CB: IEC 62368-1:2014CE-LVD: EN 62368-1: 2020+A11:2020EN62479:2010 |
| EMC | CE-EMC: EN 55032:2015+A11:2020EN 55035:2017+A11:2020EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2019FCC: 47CFR Part 15 (2020)ANSI C63.4 (2014)ICES-003 Issue 7 | |
| Environmental | RoHS: 2011/65/EU and (EU)2015/863 | |
Warranty
| Description | Specification |
| Warranty | Limited warranty |
Applications
Nowadays, most leased line service providers use traditional VPN technology to build their own backbone/metropolitan area network. However, it is slow to establish or change a connection with high construction costs. As the size of the network expands and the number of users grows quickly, it turns to be very inefficient for operation and fault management.
Based on SDN switch, the network application solution provides a new, flexible and efficient way to help users greatly reduce construction and operational costs. Centec SDN switch is already deployed in several commercial SDN switch application networks.

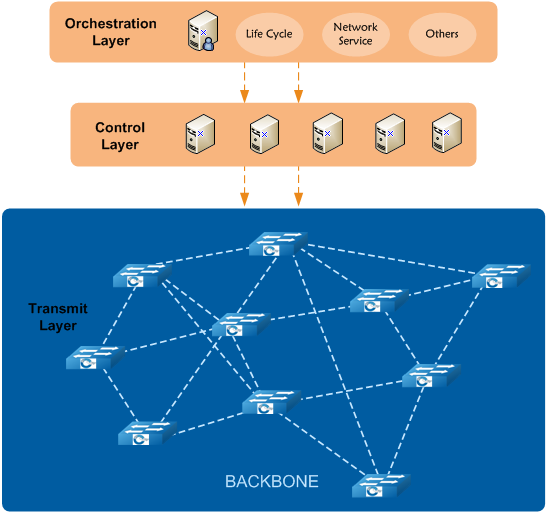

Figure1 : SDN Switch Application
Model
| Product Number | Description |
| V680-32C | Standard 1U 19” rack mountable 32 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| V680-48Y8C | Standard 1U 19” rack mountable 48 x 25GE SFP28 Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| V680-48X8C | Standard 1U 19” rack mountable 48 x 10GE SFP+ Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| V680-24Y4C | Standard 1U 19” rack mountable 24 x 25GE SFP28 Ports 4 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| V680-48X6Q | Standard 1U 19” rack mountable 48 x 10GE SFP+ Ports 6 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| V680-24Q | Standard 1U 19” rack mountable 16 x 40GE QSFP+ Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
