Introduction

The V530 Series Switches are cost effective high performance switches for SDN/Openflow applications. It is designed based on Ethernet switching silicon CTC7132. Leveraging OVS, the V530 fully supports Openflow v1.3. With the powerful full-field matching ability and flexible editing capability, it is widely used in applications like radio/ television broadcast.

V530 support 1G/2.5GE/10G/25G/40G/100G ports.

V530 currently provide the following configurations: V530-24X2C, V530-24X2Q, V530-48T4X, V530-48S4X, V530-24T8X, V530-16T16XY2Q, V530-48P4X-CM, V530-24P4X-CM, V530-4T12X, V530-6Q2C-BF, V530-48M4Y2Q-BF, V531-48M4Y2Q-BF, V530-8X6Q-I-CF, V520-8T4X-I-CF.

Features

* Standard 1RU pizza-box switch

* Total 880G forwarding capacity

* Low power consumption

* OpenFlow specification 1.3.x/1.4.x

* Up to 3.5K wildcard match flows with complete match field and stats

* L2 to L4 complete matching fields

* Per flow multiple actions

* L2 GRE tunnel/VXLAN tunnel/NVGRE tunnel

* MPLS L2 VPN/Flex MPLS

* QinQ

* Meter table with up to 1000 meter ID.

* Group(all/select/indirect/fast failover)

* Queue

* Hybrid Ovs bond: set openflow enable on linkagg port

* RMON

* IPFIX


Highlights

Based on High Performance Chip

* V530 series routing switches, which are designed based on Ethernet switching chip CTC7132. The CTC7132 is high-performance chip provides 440Gbps I/O bandwidth and 400G core bandwidth.

Varied Port Types

* Support 11G/2.5G/10G/25G/40G/100G ports to meet different network requirements.

System Design for Green and Energy Saving

* Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving network.

High Reliability

* V530 are powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy；

* Fans support 2+1 redundancy；

* Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.

Openflow Features

* V530 fully supports Openflow v1.3 with the powerful full-field matching ability and flexible editing capability. It supports L2 to L4 complete matching fields and per-flow multiple actions.

Hardware specification

Part 1

Items		V530 -24X2C	V530 -24X2Q	V530 -48T4X	V530 -48S4X	V530 -16T16XY2Q	V530 -24T8X
Size (H×W×D)		4.4 x 44.2 x 37.8 cm (1.7 x 17.4 x 14.9 in.)					4.4 x 44.2 x 24.5 cm (1.7 x 17.4 x 9.7 in.)
Weight		5.95KG	5.95KG	5.10KG	6.25KG	6.10KG	3.50KG
RS-232 Serial Ports		1 RJ-45 port located at the left side of front panel
Management Ports		1 RJ-45 out-of-band management port located at the left side of front panel
USB Ports		1 Type-A USB port located at the left side of front panel
10/100/1000Mb Base-T Ports		–	–	48	–	16	24
100/1000Mb Base-T PoE Ports		–	–	–	–	–	–
1Gb SFP Ports		–	–	–	48	–	–
2.5GbE Base-T Ports		–	–	–	–	–	–
10GbE SFP+ Ports		24	24	4	4	8	8
25GbE SFP28 Ports		–	–	–	–	8	–
40GbE QSFP+ Ports		–	2	–	–	2	–
100GbE QSFP28 Ports		2	–	–	–	–	–
Latency		660ns
CPU		SOC(Dual core, ARM A53)
Memory		2GB
Flash		8GB(eMMC)
Packet Buffer Memory		9MB
Power supply	AC	Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz
	DC	Operating Voltage: -48V ~ -60V					–
	HVDC	Not Support
Dual Power Input		Support
Power Supply Module Pluggable		Support					NOT Support (Fixed power supply)
Airflow Option		Front-to-Rear/Rear-to-Front Airflow
Fans Quantity		3					2
Hot-swappable Fans		Not Support (Fixed Fan)
Typical Power Draw		44W	44W	42W	58W	48W	41W
Max Power Draw		59W	59W	55W	70W	67W	55W
PoE Power Budget		–	–	–	–	–	–
MTBF(Hour)		206988	206988	204935	189901	>70080	204935
MTBF(Year)		23.63	23.63	23.39	21.68	>8	23.39

Part 2

Items		V530 -48P4X -CM	V530 -24P4X -CM	V531 -48M4Y2Q -BF	V530 -48M4Y2Q -BF	V530 -6Q2C -BF	V530 -4T12X
Size (H×W×D)		4.4 x 44.0 x 36.0 cm (1.7 x 17.3 x 14.2 in.)		4.4× 44.2 × 29.0 cm (1.7 x 17.4 x 11.4 in.)	4.4 × 44.2 × 37.9 cm (1.7 x 17.4 x 14.9 in.)	4.4 × 21.5 × 35.5 cm (1.7 × 8.5 × 14.0 in.)	4.0 × 44.0 × 22.0 cm (1.6 × 17.3 × 8.7 in.)
Weight		6.55KG	5.55KG	4.10KG	4.10KG	3.30KG	2.80KG
RS-232 Serial Ports		1 RJ-45 port located at the left side of front panel					1 RJ-45 port located at the right side of front panel
Management Ports		1 RJ-45 out-of-band management port located at the left side of front panel					1 RJ-45 out-of-band management port located at the right side of front panel
USB Ports		Not Support				1 Type-A USB port located at the left side of front panel	Not Support
10/100/1000Mb Base-T Ports		48	24	–	–	–	4
100/1000Mb Base-T PoE Ports		48	24	–	–	–	–
1Gb SFP Ports		–	–	–	–	–	–
2.5GbE Base-T Ports		–	–	48	48	–	–
10GbE SFP+ Ports		4	4	–	–	–	12
25GbE SFP28 Ports		–	–	4	4	–	–
40GbE QSFP+ Ports		–	–	2	2	6	–
100GbE QSFP28 Ports		–	–	–	–	2	–
Latency		660ns
CPU		SOC(Dual core, ARM A53)
Memory		1GB		2GB
Flash		8GB(eMMC)
Packet Buffer Memory		9MB
Power supply	AC	Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz
	DC	–			Operating Voltage: -36V ~ -72V		–
	HVDC	Not Support			Maximum Voltage: 180 ~ 300V		Not Support
Dual Power Input		NOT Support (Single power supply)			Support	NOT Support (Single power supply)
Power Supply Module Pluggable		NOT Support (Fixed power supply)			Support		NOT Support (Fixed power supply)
Airflow Option		Front-to-Rear Airflow					Left-to-Right Airflow
Fans Quantity		4				2
Hot-swappable Fans		Not Support (Fixed Fan)			2*Hot-swappable Fan Module (2 Fans Per Module)	1* hot-swap Fan Module(2 fan inside)	Not Support (Fixed Fan)
Typical Power Draw		System Power Draw 42W	System Power Draw 36W	TBD	TBD	TBD	33W
Max Power Draw		System Power Draw 55W	System Power Draw 50W	TBD	TBD	TBD	43W
PoE Power Budget		700W	300W	–	–	–	–
MTBF(Hour)		204935	204935	>50000	>50000	>50000	>50000
MTBF(Year)		23.39	23.39	>5.71	>5.71	>5.71	>5.71

Part 3

Items		V530-8X6Q-I-CF	V520-8T4X-I-CF
Size (H×W×D)		6.6 x 34.5 x 38.5 cm	15.5 x 12.8 x 11 cm
Weight		5KG	3KG
RS-232 Serial Ports		1 RJ-45 Console port located at the right side of rear panel	1 MICRO-USB Console port located at the top panel
Management Ports		1 RJ-45 out-of-band management port located at the right side of rear panel	1 RJ-45 out-of-band management port located at the top panel
USB Ports		1 Type-A USB port located at the right side of rear panel	1 Type-A USB port located at the left side of front panel
10/100/1000Mb Base-T Ports		–	8
100/1000Mb Base-T PoE Ports		–	–
1Gb SFP Ports		–	–
2.5GbE Base-T Ports		–	–
10GbE SFP+ Ports		8	4
25GbE SFP28 Ports		–	–
40GbE QSFP+ Ports		6	–
100GbE QSFP28 Ports		–	–
Latency		660ns
CPU		SOC(Dual core, ARM A53)
Memory		2GB
Flash		8GB(eMMC)
Packet Buffer Memory		9MB	3MB
Power supply	AC	7 pin 5.08mm terminal block Alarm connection：3 pin 5.08mm terminal block（share the same terminal block of power connection）
	DC	–
	HVDC	Not Support
Dual Power Input		NOT Support (Single power supply)
Power Supply Module Pluggable		NOT Support (Fixed power supply)
Airflow Option		Front-to-Rear Airflow	N/A
Fans Quantity		4	0
Hot-swappable Fans		Not Support (Fixed Fan)	N/A
Typical Power Draw		–	–
Max Power Draw		60W	60W
PoE Power Budget		–	–
MTBF(Hour)		>100000	>100000
MTBF(Year)		>11.5	>11.5

Performance specification

Part 1

Items		V530 -24X2C	V530 -24X2Q	V530 -48T4X	V530 -48S4X	V530 -16T16XY2Q	V530 -24T8X
Line speed forwarding	Switch capability	880 Gbps	640 Gbps	176 Gbps	176 Gbps	752 Gbps	208 Gbps
	Throughput	540 Mpps	480 Mpps	132 Mpps	132 Mpps	540 Mpps	155 Mpps

Part 2

Items		V530 -48P4X -CM	V530 -24P4X -CM	V531 -48M4Y2Q -BF	V530 -48M4Y2Q -BF	V530 -6Q2C -BF	V530 -4T12X
Line speed forwarding	Switch capability	176 Gbps	128 Gbps	600 Gbps	600 Gbps	880 Gbps	248 Gbps
	Throughput	132 Mpps	95.2 Mpps	446.4Mpps	446.4Mpps	540 Mpps	184.5 Mpps

Part 3

Features		V530-8X6Q-I-CF	V520-8T4X-I-CF
Line speed forwarding	Switch capability	640 Gbps	96 Gbps
	Throughput	476.2 Mpps	71.4 Mpps

Software specification

Features		V530
Class	Sub class	default	ipv6	extended-buffer
Jumbo frame	Maximum jumbo frame size	9600
Flow	Maximum flow number	3500	1150	3500
	Maximum flow stats number	3500	1150	3500
	Mac extend flow-table	10000	10000	10000
Group	Group-all number	2000	160	2000
	Group-all-max-per-group-bucket number	288	288	288
	Group-all-max-per-bucket-action number	13	13	13
	Group-select number	63	63	63
	Group-select-max-per-group-bucket number	16	16	16
	Group-select-max-per-bucket-action number	13	13	13
	Group-ff number	63	63	63
	Group-ff–max-per-group-bucket number	16	16	16
	Group-ff-max-per-bucket-action number	13	13	13
	Group-indirect number	63	63	63
	Group-indirect-max-per-group-bucket number	1	1	1
	Group-indirect-max-per-bucket-action number	13	13	13
Tunnel	L2GRE-tunnel number	200	200	200
	NVGRE-tunnel number	200	200	200
	VXLAN-tunnel number	200	200	200
	local-vtep number	4	4	4
Meter	Meter-Max number	1000	1000	1000
	Meter-Max-Stats number	1000	1000	1000
	Meter-Max-Band number	180	180	180
	Meter-Max-Burst	52400	52400	52400
MPLS	Valid range for match MPLS label	16-1048575	16-1048575	16-1048575
	Valid range for edit MPLS label	1-1048575	1-1048575	1-1048575
Link aggregation	Number of link aggregation	55	55	55
	Maxinum Linkagg port number to enable Openflow	55	55	55
VLAN	VLAN forwarding instances	4094	4094	4094
	VLAN interface	256	256	256
	Protected VLAN	50	50	50
Unicast MAC	MAC address capacity	32768	32768	2048
	Static MAC address	1024	1024	1024
	Dynamic MAC address	32768	32768	2048
	Blackhole MAC address capacity （MAC Filter entries）	128	128	128
ARP	ARP Capacity （IPv4 host routes）	4096	4096	4096
IPv4	FIB	8192	8192	8192
	IPv4 ECMP groups	176	176	176
	ECMP Member	64	64	64
	L2 Multicast group members	2048	2048	2048
	L2 Multicast entries	2048	2048	2048
ACL	Ingress ACL entries	100	100	100
	Egress ACL entries	0	0	0
	System configurable ACL	4096	4096	4096
	System configurable ACE	8192	8192	8192
OSPF	OSPF network	32	32	32
	OSPF area range	32	32	32
	OSPF area authentication	3000	3000	3000
QOS	Drop profile	28	28	28
	Queue shape profile	59	59	59
	Port shape profile	63	63	63
	Port policer	63	63	63
IPSLA	IP sla entries	255	255	255
Track	Track objects	500	500	500
IPFIX	Ingress IPFIX entries	4096	4096	4096
	Egress IPFIX entries	4096	4096	4096
	Ingress IPFIX resource	256	256	256
	Egress IPFIX resource	256	256	256

Environmental characteristics

Description	Specification
Operating Temperature	0 to 45 ºC
Storage Temperature	-40 to 70 ºC
Relative Humidity	0 to 95% (non-condensing)

Safety and compliance

Product Number	V530-48S4X V530-48T4X V530-24X2C V530-24X2Q V530-16T16XY2Q	V530-24T8X
Certifications	CQC CB CE-LVD CE-EMC FCC FCC ICES ETL RoHS	CQC CE-LVD CE-EMC FCC FCC ICES ETL
Safety	ETL: UL 62368-1:2014 Ed.2CB: IEC 62368-1:2014CE-LVD: EN 62368-1: 2020+A11:2020EN62479:2010CQC: GB4943.1-2011GB/T9254-2008	ETL: UL 62368-1:2014 Ed.2CE-LVD: EN 62368-1: 20214+A11:2017EN62311:2008CQC: GB4943.1-2011GB/T9254-2008
EMC	CE-EMC: EN 55032:2015+A11:2020EN 55035:2017+A11:2020EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2019FCC: 47CFR Part 15 (2020)ANSI C63.4 (2014)ICES-003 Issue 7	CE-EMC: EN 55032:2015EN 55024:2010EN 61000-3-2:2019EN 61000-3-3:2013+A1:2019FCC: 47CFR Part 15 (2019)ANSI C63.4 (2014)ICES-003 Issue6
Environmental	RoHS: 2011/65/EU and (EU)2015/863	N/A

Warranty

Description	Specification
Warranty	Limited warranty

Applications

Nowadays, most leased line service providers use traditional VPN technology to build their own backbone/metropolitan area network. However, it is slow to establish or change a connection with high construction costs. As the size of the network expands and the number of users grows quickly, it turns to be very inefficient for operation and fault management. Based on SDN switch, the network application solution provides a new, flexible and efficient way to help users greatly reduce construction and operational costs. Centec SDN switch is already deployed in several commercial SDN switch application networks.

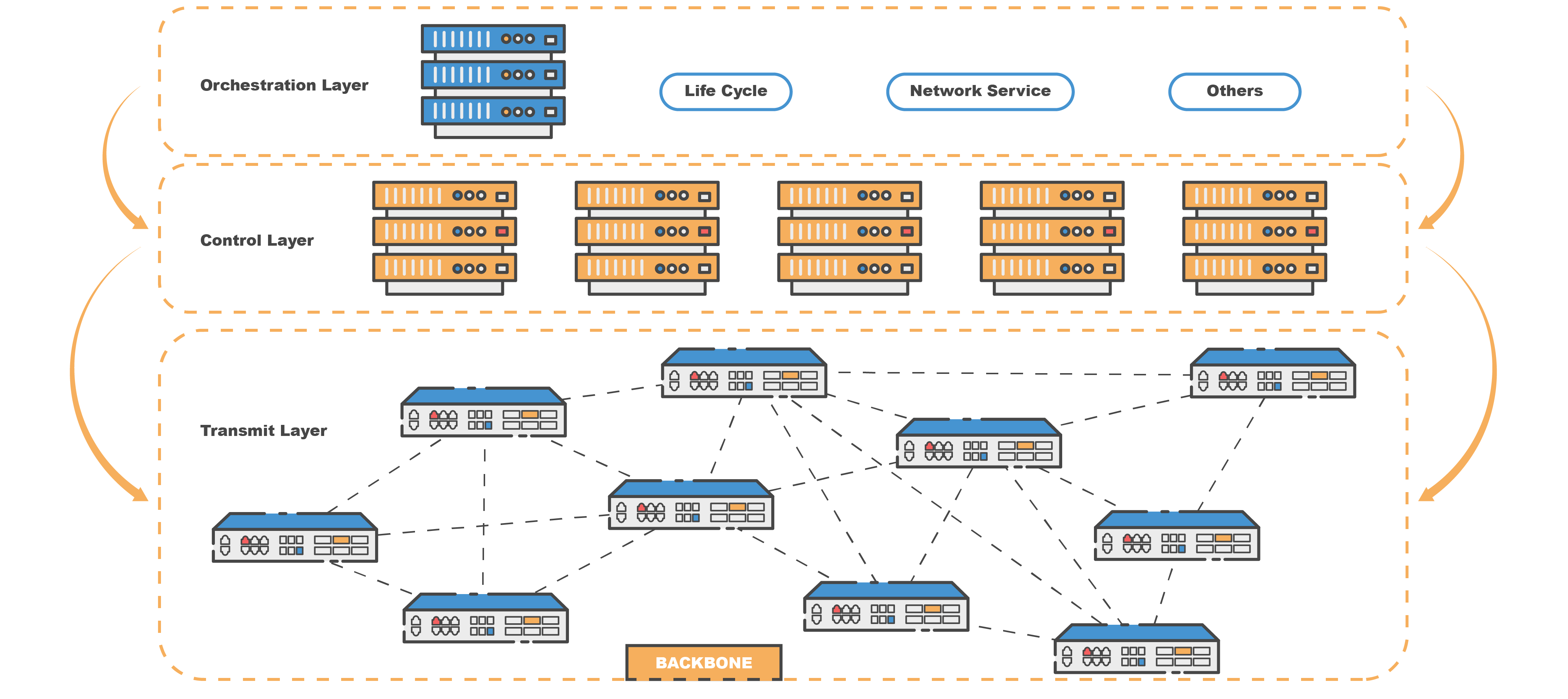

Figure 1：SDN Switch Application

Model

Product Number	Description
V530-24X2C	Standard 1U 19” rack mountable 24 x 10GE SFP+ Ports 2 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-24X2Q	Standard 1U 19” rack mountable 24 x 10GE SFP+ Ports 2 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-48T4X	Standard 1U 19” rack mountable 48 x 1GE Base-T Ports 4 x 10GE SFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-48S4X	Standard 1U 19” rack mountable 48 x 1GE SFP Ports 4 x 10GE SFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-24T8X	Standard 1U 19” rack mountable 24 x 1GE Base-T Ports 8 x 10GE SFP+ Ports Dual fixed AC power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-16T16XY2Q	Standard 1U 19” rack mountable 16 x 1GE Base-T Ports 8 x 10GE SFP+ Ports 8 x 25GESFP28 Ports 2 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
V530-48P4X-CM	Standard 1U 19” rack mountable 48x1GE Base-T Ports (PoE 802.3af/at) 4x10GE SFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
V530-24P4X-CM	Standard 1U 19” rack mountable 24x1GE Base-T Ports (PoE 802.3af/at) 4x10GE SFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
V530-4T12X	Standard 1U 19” rack mountable 4 x 1GE Base-T Ports 12 x 10GE SFP+ Ports Single fixed AC power supply Left-to-Right Airflow, Fixed Fan
V530-6Q2C-BF	1U Half-width of 19” rack mountable 6 × 40GE QSFP+ Ports 2 × 100GE QSFP28 Ports Single modular power supply Front-to-Rear Airflow, Fixed Fan
V530-48M4Y2Q-BF	Standard 1U 19” rack mountable 48 × 2.5GE Base-T Ports 4 × 25GE SFP28 Ports 2 × 40GE QSFP+ Ports Dual modular power supply Front-to-Rear Airflow, Fixed Fan
V531-48M4Y2Q-BF	Standard 1U 19” rack mountable 48 × 2.5GE Base-T Ports 4 × 25GE SFP28 Ports 2 × 40GE QSFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
V530-8X6Q-I-CF	1.5U rack mountable 8 x 1GE/10GE SFP Ports 6 x 40GE/10GE QSFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
V520-8T4X-I-CF	DIN-Rail mounting or Wall mounting 8×10/100/1000 Base-T Port 4x1GE/10GE SFP+ Port Single fixed AC power supply Fan less design
