Tonmind SIP Paging Adapter SIP-T20
SIP-T20, 48K OPUS Audio Codec, MIC, headset and speaker interface. Alarm: GPIO, HTTP URL and relay out. Compatible with VoIP SIP devices, ONVIF VMS.
Price：Request Pricing
Category：PA System, Product, SIP Paging Adapter
86+13823702426
SIP-T20, 48K OPUS Audio Codec, MIC, headset and speaker interface. Alarm: GPIO, HTTP URL and relay out. Compatible with VoIP SIP devices, ONVIF VMS.
- Item NO.:SIP-T20
- Order(MOQ):10
- Payment:T/T,Western Union, Paypal
- Product Origin:China
- Color:Black
- Lead Time：1 Week
- Weight：250g
Product Description
The IP Paging Adapter SIP-T20 is simple and slim design with black color. It has built-in 15W amplifier, interface of MIC input, Headset output, Speaker output, GPIO Alarm input, GPIO Alarm output, Relay Alarm output. The SIP Paging Adapter can connect analog speaker or amplifier so as to realize SIP Speaker or SIP Intercom function. Besides, it can also connect Alarm and MIC. The Paging Adapter is compatible with VoIP devices and ONVIF VMS/NVR. The SIP Paging Gateway supports two way communication, pre-recorded messages, schedule play, GPIO in, HTTP control.It’s perfect to be applied in various PA System, for instance, school, retail, commercial centers, etc.
SIP PagingAdapter Feature
• Two-way intercom communication
• Support 48K OPUS Audio Codec
• SIP & Onvif protocol compatibility
• Pre-recorded message(WAV/MP3）
• Alarm: GPIO, HTTP URL and relay out
• MIC, headset and speaker interface
• Reset and volume control
Specification
| Audio | |
| Decoding | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Supports SIP protocol for integration with VoIP systems and SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
| Amplifier | |
| Amplifier | 15W |
| General | |
| Material | Metal |
| Power Supply | PoE or DC 12V |
| Interface | 1* MIC input, 1* Headset output, 1* Speaker output, 2* GPIO Alarm input, 1* GPIO Alarm output, 2* Relay Alarm output |
| Dimensions | 112mm *105mm * 29mm |
| Weight | 250g |
| Languages | English |
| Warranty | 2 years |
| Package includes | SIP Paging AdapterQuick Start Guide |
| Customization | Accept OEM, ODM |

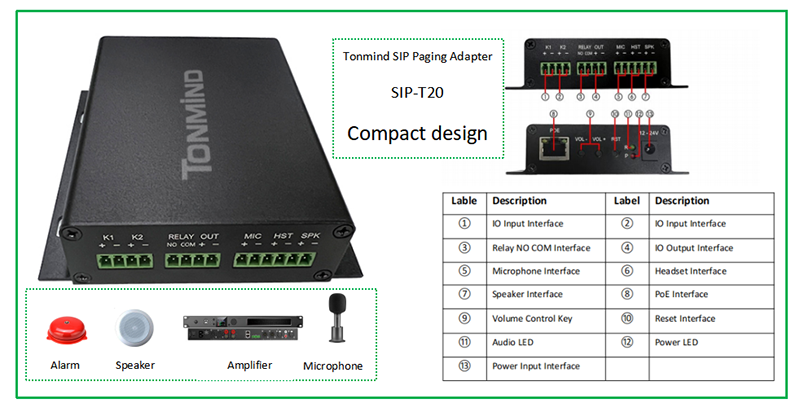

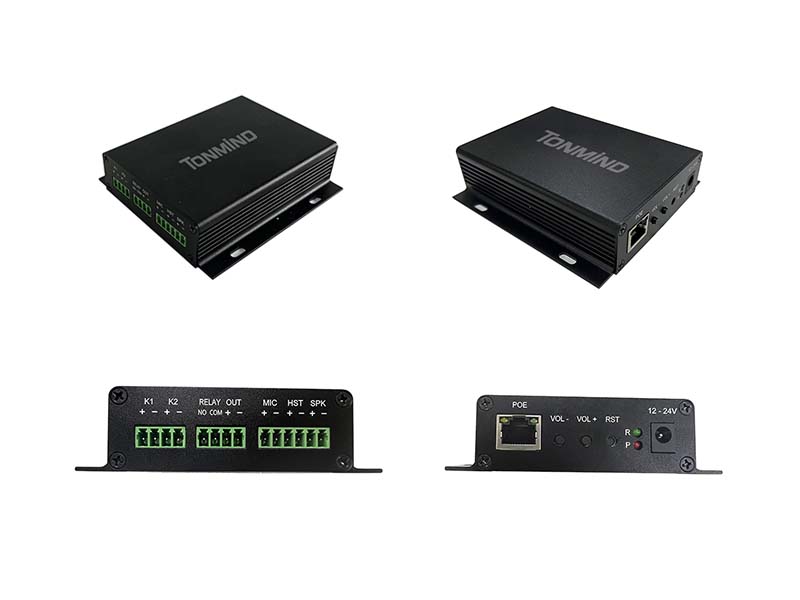

Product Show
