Tonmind PA System Software Package PA100
Tonmind PA System Software Package PA100 is PA System software pre-installed on a windows 10 hardware.
Product Description
Tonmind PA System Software Package PA100 is PA System software pre-installed on a windows 10 hardware.
- Item NO.:PA100
- Order(MOQ):1
- Payment:T/T, Western Union, Paypal
- Product Origin:China
- Color:Black
- Lead Time：1 Week
- Weight：900
Tonmind PA System Software Package provides easy and remote management of IP audio devices. With conbination of both software and hardware, user can manage zones, contents, rings, scheduling and volume from one single user inteface. It’s especially useful in various PA System cases, which helps you broadcast music, live or scheduled announcements, emergency messages, and more, either individually in separate zones or centrally to all devices. With quick installation, intuitive operation, and online device status monitoring, Tonmind PA100 is an efficient and professional tool that can be applied in school PA System, hotel PA System, hospital PA System, commercial PA System, etc.
Product Feature
• One full package contains required software and hardware.
• Take full central control with one single user interface.
• Easy control of zones, contents, rings, scheduling, volume.
• Support SIP and RTP Multicast.
• Compatible with all Tonmind IP audio products and other standard SIP protocol devices.
Specification
| Hardware Specification | |||
| Operating system | Windows 10 | LAN | RJ-45 1000Mbps |
| Display | 13.25in 800 x 1280 IPS | Wireless | 5G&2.4GWi-Fi, Bluetooth 4.1 |
| Processor | Intel Apollo Lake Processor (1.10Ghz ~ 2.20 GHz) | Power supply | 12V/2A |
| Graphic card | Intel HD Graphics500 | Operating conditions | -10 ºC~ 55ºC |
| Memory | 4GB DDR | Dimensions | 244 x 184.2 x 65 mm |
| Storage | 64GB eMMC | Weight | 0.9KG |
| Connectors | 2xUSB2.0, 2xUSB3.0, 1x RS-232, 1xHDMI, 1xMicro SD, 1xMicrophone, 1x RJ45 Ethernet | Included accessories | Power adapter, microphone |
| Software | Network remote wake-up, remote installation, clock timing boot | Warranty | 2 years |
| Software Specification | |||
| System size | 100 zones and 100 SIP extension | Audio streaming | PCMU, G.711 u-Law (8kHz, 64kbps) PCMA, G.711 a-Law (8kHz, 64kbps) G.722 ADPCM (16kHz, 64kbps) Linear PCM 16 bit Stereo (44.1kHz, 1.4Mbps) Linear PCM 16 bit Mono (44.1kHz, 705.6kbps) OPUS 48kHz 64kbps |
| Support | SIP paging, Sip Trunk and RTP Multicast | Audio decoding | OPUS, G722, GSM, PCMU, PCMA |
| Compatible products | Standard SIP protocol devices like SIP-01, SIP-11, SIP-21, SIP-T20 and other SIP devices | Audio VoIP | OPUS，G711U，G711A，GSM，MP3 |
| Function | Zones, Contents, Rings, Scheduling, Volume | Streaming | Live microphone, various music players like spotify, local music, internet radio by URL. |
| Languages | English (can add if need others) | Solution Cases | Various PA System. For instance, School PA System, Office PA System, Hotel PA System, Hospital PA System, Commercial Building PA System. |
| Tonmind PA System Software Package Contains: | |||
| Tonmind PA System Lite | SIP Paging and RTP multicasting | Music player | Spotify |
| Tonmind Audio Manager | RPT multicasting | Debugging tool–Wireshark | Data capture and problem analyze |
| IP Tool | Search and set SIP devices | Team viewer | Problems remote solve |

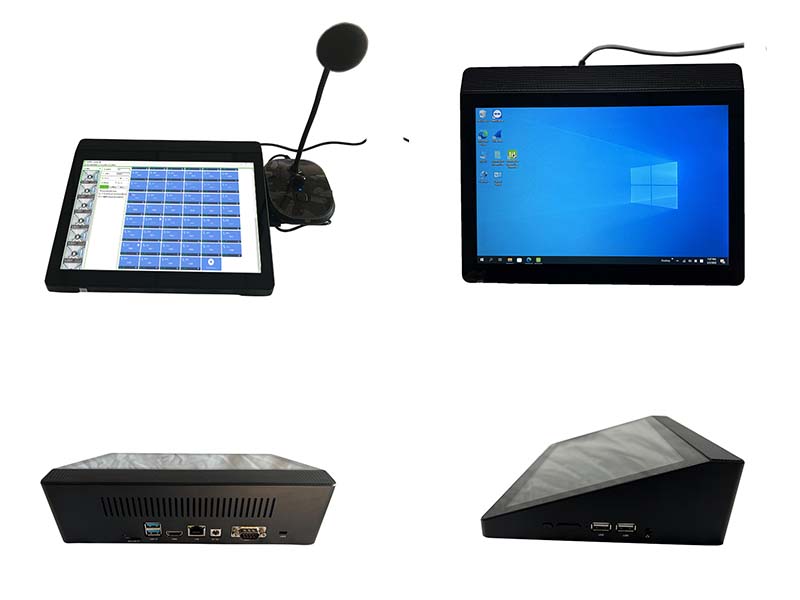

Product Image
