Product Overview

MESH 6502MB Wideband Wireless MESH outdoor base station AD hoc networking product is our company’s new miniaturized, high-throughput wideband MESH equipment. The device is developed based on COFDM technology and MESH multi-hop AD hoc networking technology, and realizes the free networking of different product forms, which can provide users with fast and flexible solutions for various business needs (such as: high-definition video, voice intercom and IP data transmission) in a complex environment. Wideband AD hoc network radio capable of self-organizing, adaptive and self-healing Mesh without center is the best choice for point-to-point, point-to-many or many-to-many integrated service communication. Mesh radio realizes the communication between different nodes in the same network. Dynamic routing, HD video with multi-hop relays, multi-channel data and fidelity calls in complex applications such as fast movement, occlusion of non-line-of-sight and environmental interference.

Full IP design, flexible installation and use, easy operation and maintenance, can provide a variety of frequency band customization, expand WIFI, GPS, 3G/4G and other functions to support integrated communication needs. Flexibly used in military communication private networks, public security private networks, emergency communication private networks, industry information private networks, regional broadband private networks, wireless monitoring private networks, collaborative management private networks and intelligent transmission private networks, etc. For military communications, anti-terrorism emergency response, public security law enforcement, security activities, emergency rescue, fire command, forest fire prevention, forest monitoring, civil air defense/earthquake, power inspection, digital oil field, drone swarm, vehicle interworking, ship formation, maritime communications, airport ground handling, subway emergency response, highway construction, hydrology monitoring, mobile mining and sowing, medical treatment and other fields, Provide stable, reliable, timely and efficient high-definition video, multi-channel data, clear voice and visual command and dispatch.

Functional Features

1.Multi-carrier COFDM technology

Peak point-to-point throughput up to 70Mbps

point-to-point transmission distance of more than 10Km (visual distance)

2.Multi-hop AD hoc networking (MESH) technology

Automatic networking, automatic calculation of the network route, without manual intervention, effectively save manpower and material resources

Supports 32-node AD hoc networking, automatic multi-hop transmission, and seamless area coverage

3. Portability and ease of use

Boot immediately, no need to set

Supports mobile phone and Web configuration and remote management

4. Customized function

Transmit power 0.1-2W adjustable

Operating band 200MHz-2.4GHz can be customized

Signal bandwidth 5/10/20MHz adjustable

Technical parameter table

Functional option		specification	Custom item
Wireless characteristics	Frequency range	1437±15MHz	200MHz to 1.5GHz can be customized
	bandwidth	5/10/20MHz Adjustable
	Modulation mode	COFDM
	Constellation modulation	BPSK/QPSK/16QAM/64QAM (Adaptive)	Fixed rate can be customized
	Transmission rate	Peak value 70Mbps@20MHz
	Digital sensitivity	-92dBm@5MHz
	Transmission distance	> 10km (visual distance)
	Transmitting power	20~30dBm per way (adjustable)	Power customizable
Networking function	Networking capability	Supports 16 nodes	A maximum of 32 nodes can be customized
	Networking hop	> 8
	Network topology	No center network, star network, chain network, grid network, etc
	Network transparent transmission	Supports network transparent transmission
System function	Peripheral interface	Network port, headset
	Video input	IP video input is supported	Customizable HDMI/AV/VGA/SDI input
	Video compression	H.265/H.264	customizable
	Control function	Support network management system platform
	System upgrade	Supports one-click upgrade and remote upgrade
	Other functions	GPS/ Beidou, WiFi
Physical characteristics	Power dissipation	≤70W
	Power source	DC14.6-14.8V OR AC220V
	Operating temperature	-20℃~55℃
	Working humidity	10% ～ 90%
	Class of protection	IP65
	Overall dimension	220x160x42mm
	Overall weight	1.68kg

Application Fields

The product adopts MESH ad-hoc networking technology, which can be flexibly applied to military communication private networks, public security private networks, emergency communication private networks, industry information private networks, regional broadband private networks, wireless monitoring private networks, collaborative management private networks and intelligent transmission private networks, etc. For military communications, anti-terrorism emergency response, public security law enforcement, security activities, emergency rescue, fire command, forest fire prevention, forest monitoring, civil air defense/earthquake, power inspection, digital oil field, drone swarm, vehicle interworking, ship formation, maritime communications, airport ground handling, subway emergency response, highway construction, hydrology monitoring, mobile mining and sowing, medical treatment and other fields, Provide stable, reliable, timely and efficient high-definition video, multi-channel data, clear voice and visual command and dispatch.

Product application legend

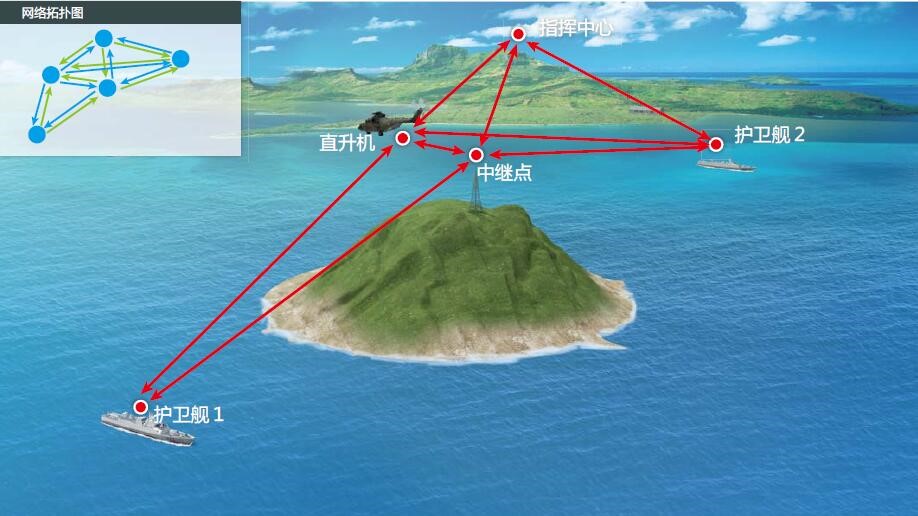

Border coastal defense MESH AD hoc wireless communication application

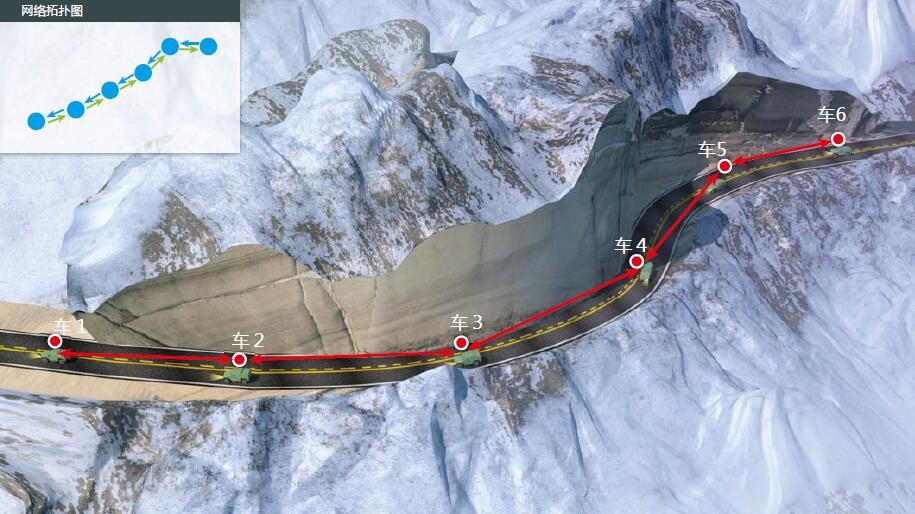

Fleet MESH AD hoc wireless communication application:

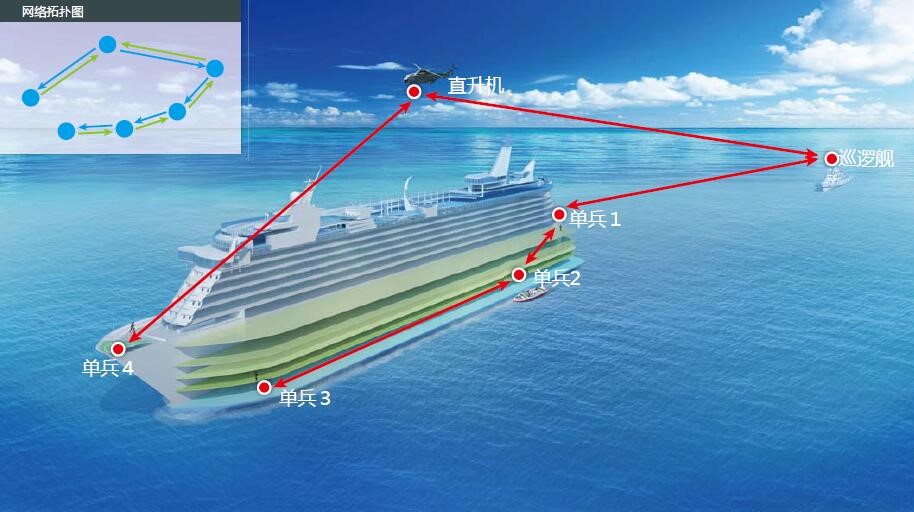

Onboard detection and search MESH AD hoc wireless communication application:：

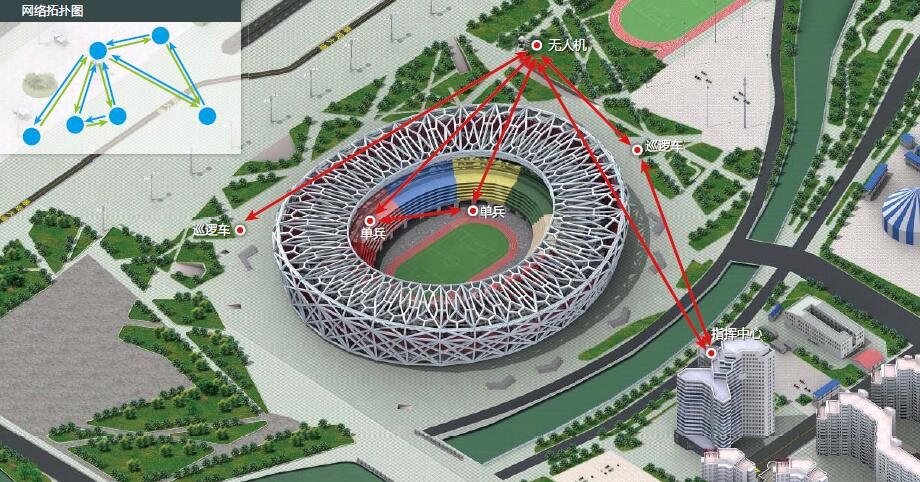

Public security deployment control, armed patrol MESH AD hoc wireless communication application:

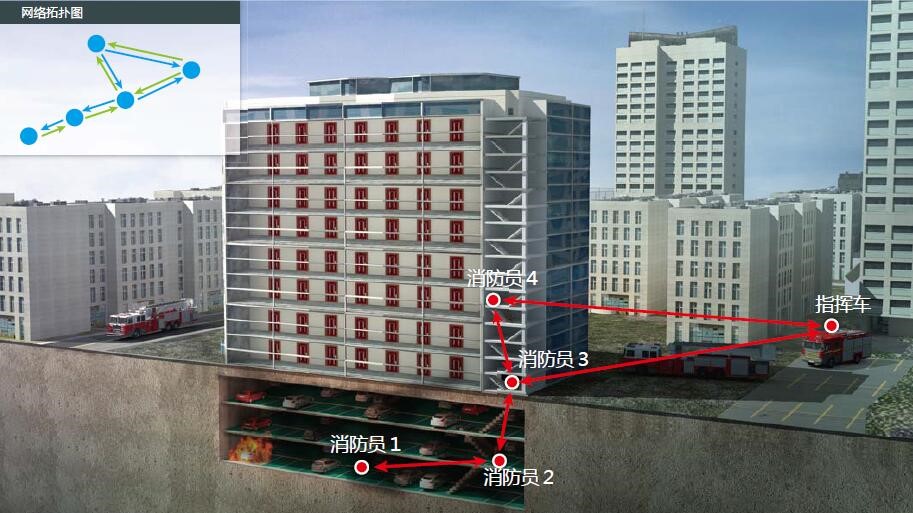

Fire relief MESH AD hoc wireless communication application：

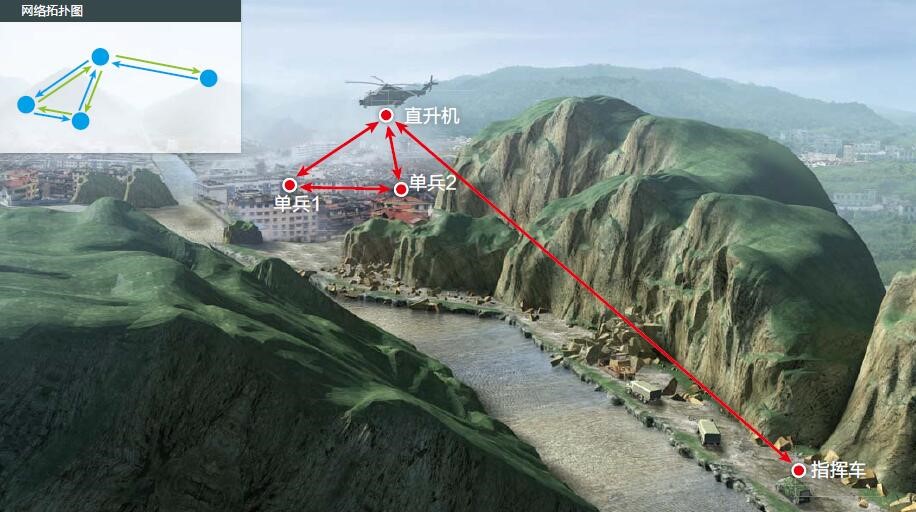

Natural disaster emergency command MESH AD hoc wireless communication application：

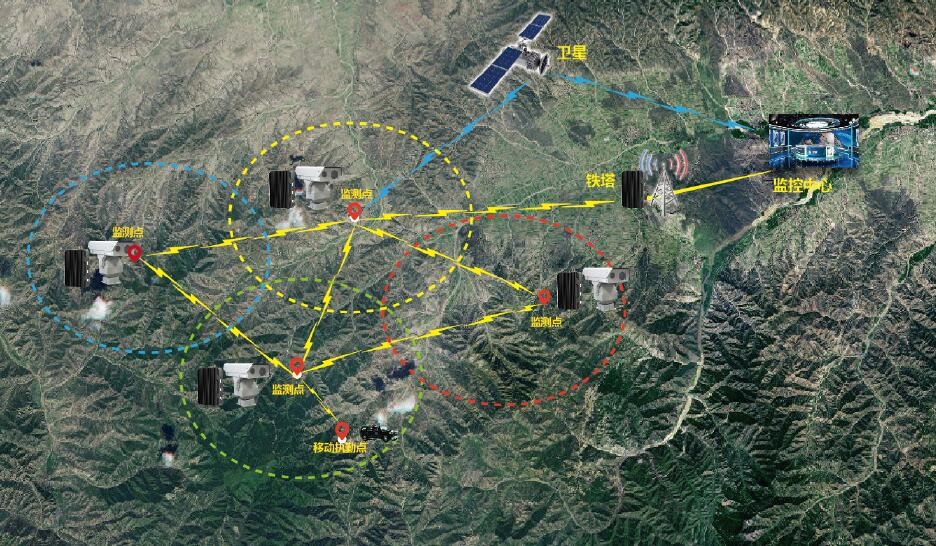

Forest fire prevention MESH AD hoc wireless communication application：
