LigoWave ligoDLB 2 Outdoor Wireless Device Outdoor PTP

LigoWave’s DLB 2 is a versatile, very effi cient, and stable 2.4 GHz access point. This product is equipped with an extreme output power (up to 31 dBm) 802.11n MIMO radio wrapped securely inside a robust enclosure. The two N-type connectors allow the connection of external antennas suited for a wide range of applications. The powerful radio core is coupled with an advanced and feature-rich operating system, optimized for high performance wireless communications while optionally allowing compatibility with older 802.11 b/g standards devices. The smart dynamic polling based protocol (iPoll 2) ensures reliable communication even in congested areas with 64 client devices connected to the base-station. Equipped with LigoWave’s dual fi rmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior fi rmware in the event of an upgrade failure.

Price:Request Pricing

Category:LigoDLB, Product, Wireless Bridge

8613823702426 ligowave.china@gmail.com

WhatsApp

86+13823702426

Introduction

Highlights

 • 2.402 – 2.492 GHz support
 • 80,000 PPS
 • 170 Mbps capacity
 • High output power 31 dBm radio
 • External N connectors
 • Distance recommendations: antenna dependent
Powerful OS
 • Smart polling data transmission protocol (iPoll 3)
 • Weather proof (IP-65 rated) design
 • Free NMS (Infinity Controller)
 • Responsive HTML 5 based GUI
Wall and pole mounting option

Distance recommendations

PTP mode
Antenna dependent PTMP mode
Antenna dependent


DLB 2

    LigoWave DLB 2 is a versatile, very effi cient, and stable 2.4 GHz access point. This product is equipped with an extreme output power (up to 31 dBm) 802.11n MIMO radio wrapped securely inside a robust enclosure. The two N-type connectors allow the connection of external antennas suited for a wide range of applications. The powerful radio core is coupled with an advanced and feature-rich operating system, optimized for high performance wireless communications while optionally allowing compatibility with older 802.11 b/g standards devices.
    The smart dynamic polling based protocol (iPoll 2) ensures reliable communication even in congested areas with 64 client devices connected to the base-station.
    Equipped with LigoWave’s dual fi rmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior fi rmware in the event of an upgrade failure.
The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 2 was designed and tested to meet an IP-65 rating as well as vibration, temperature, drop,salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges.

OS

    The DLB OS is a highly functional and easy to use operating system. This powerful and flexible operating system ensures flawless operation of all DLB hardware devices and effortless setup for those deploying the networks。
 • Smart polling data transmission protocol (iPoll 2)
 • Dual-fi rmware image support
 • Responsive HTML 5 based GUI
 • 170 Mbps capacity
 • 80,000 PPS rate
 • IPv6 support
 • WNMS compatible

WNMS

  WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifi es a large number of management and monitoring tasks for network administrators. LigoWave’s comprehensive network management system supports several thousands of nodes. Multiple networks may be maintained and monitored using one server. A rich feature set helps to diagnose network problems effectively, visualize networks on a map, perform scheduled fi rmware upgrades automatically, track states of devices, get failure alerts, and collect statistics. The Web-based system environment
supports multi-user accounts. Several administrators may manage different networks on the same server, without having access to each other’s equipment. WNMS is available as a stand-alone version for Linux and Windows servers, as a cloud-based system and as a mobile application for Android devices.

Specifications

Product/ distance recomendationPTMP modePTP modePTP mode (full capacity)
DLB 2Antenna dependentAntenna dependentAntenna dependent

Wireless

WLAN standard IEEE 802.11 b/g/n, iPoll (proprietary)
Radio mode MIMO 2×2
Radio frequency band 2.402 – 2.492 GHz (FCC 2.412 – 2.462 GHz)
Transmit power Up to 31 dBm (country dependent)

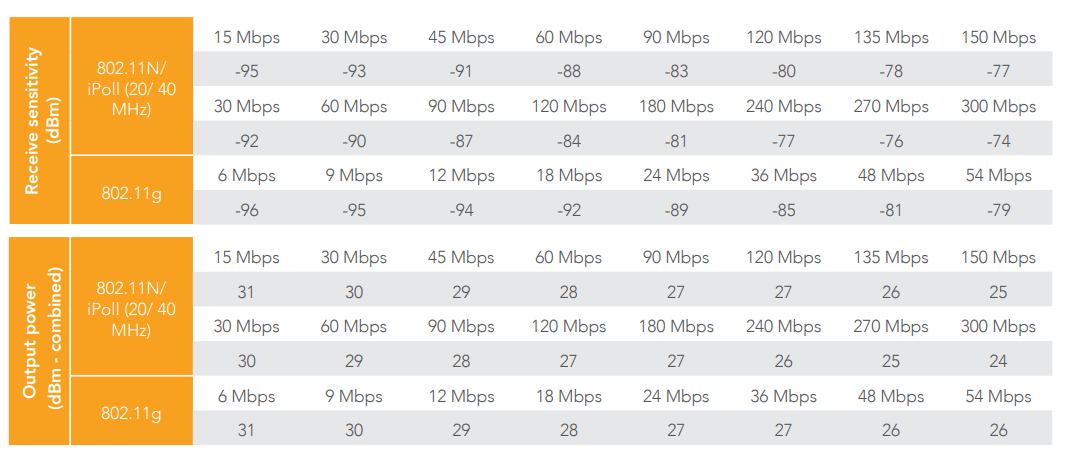

Receive sensitivityVarying between -96 and -74 dBm depending on modulation
Channel size5,10, 20, 40 MHz
Modulation schemes802.11 g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 b: DSS (CCK, DQPSK, DBPSK)
Data rates 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps802.11 g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11 b: 11, 5.5, 2, 1 Mbps
Error correctionFEC, Selective ARQ
Duplexing schemeTime division duplex

Antenna

TypeExternal N-connectors
GainAntenna dependent

Wired

Interface10/100 Base-T, RJ45

Software

Wireless operating modesAccess point (auto WDS), access point (iPoll 2), station (WDS, iPoll 2), station (ARP NAT)
Wireless techniquesSmart station polling, smart auto-channel, adaptive auto modulation, automatic
transmit power control (ATPC)
Wireless securityWPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
Wireless QoS4 queues prioritization on iPoll 2
Network operating modesBridge, router iPv4, router IPv6
Network techniquesRouting with and without NAT, VLAN
WAN protocolsStatic IP, DHCP client, PPPoE client
ServicesDHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
ManagementHTTP(S) GUI, SSH, SNMP read, WNMS, Telnet
ToolsSite survey, link test, antenna alignment

Physical

DimensionsLength 150 mm (5.9 ‘’), width 115 mm (4.5 ‘’), height 55 mm (2.1 ‘’)
Weight450 g (16.2 oz)
MountingCombination wall / pole mount included

Power

Power supply12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package)
Power source100 – 240 VAC
Power consumption (max)4.5 W

Environmental

Operating temperature-40°C (-40 F) ~ +65°C (+149 F)
Humidity0 ~ 90 % (non-condensing)

Management

System monitoringSNMP v1 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certifi cationFCC/IC/CE
