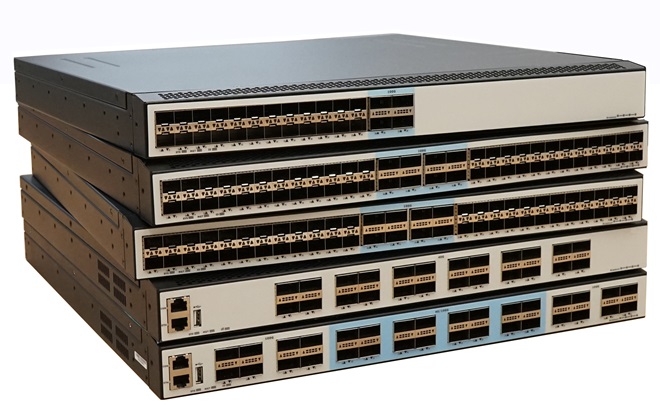

E680 Series ethernet Routing Switches
The E680 Series Routing Switches (whose abbreviation is “E680”) are high performance 10G/25G/40GE/100G switches designed by Ethernet switching chip CTC8180.
Price：Request Pricing
Category：Product, Router/Switch, Router/Switch/Hard Drive
86+13823702426
Introduction
The E680 Series Routing Switches (whose abbreviation is “E680”) are high performance 10G/25G/40GE/100G switches designed by Ethernet switching chip CTC8180.
E680 have large capacity and high density ports of 10G/25G/40GE/100G.
E680’s CentecOS system software supports mainstream protocols and applications which can be conveniently deployed and managed.
E680 currently provide the following configurations: E680-32C/E680-48Y8C/E680-48X8C/E680-24Y4C/E680-48X6Q/E680-24Q.
Features
Based on High performance chip
E680 series routing switches, which are designed based on Ethernet switching chip CTC8180. The CTC8180 is high-performance chip which help the E680 to meet the requirement of Metro/Enterprise/HCI networks.
Varied Port Types
Support 10G/25G/40G/100G ports to meet different network requirements.
System Design for Green and Energy Saving
Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving network.
Customized Profile for Different Deployment Scenarios
The Flexible Table Management (FTM) technology offers multiple table size configuration profiles as optimized choices for different network scenarios. Support up to 120K MAC address tables. Support up to 60K IP routing tables.
Intelligent Ethernet OAM: completed network fault management and performance guaranty
With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.
The fault management technique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.
E680 Support remote management，network monitoring，network fault indication，remote loopback and MIB parameter retrieval according to the standard 802.3ah EFM.
Virtual Network and Intelligent Lossless Network Features
E680 support leading edge technology: Priority Flow Control (PFC), explicit Congestion Notification (ECN), etc.

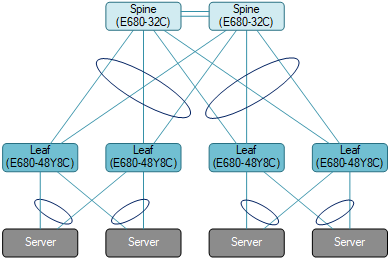

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.
Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

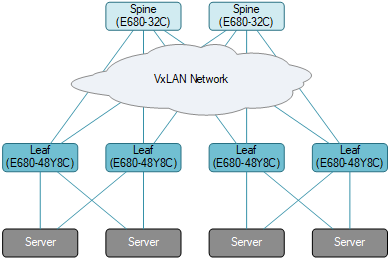

Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.
E680 supports RPC-API for SDN(Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.
High Reliability
E680 are powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy；Fans support 2+2 redundancy；Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.
Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.
Patented technology “Sysmon” for CPU status monitoring can take action when system is error.
Outstanding QoS Control
E680 provides 10 hardware queues per-port (8 unicast queues, 1 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.
Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.
Triple-play Service Support with Bandwidth Guaranty for High Quality Application
E680 offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.
Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With CentecOS software, IPTV service and multicast latency control are fully supported.
Comprehensive Network Security Policy
E680 supports subscriber-class / switch-class / network-class security control.
IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.
ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm Control and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.
Convenient Management features
Support varied management interfaces, include console port / inband network ports / outband network port / USB port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, SSL, etc. to ensure security of management.ment more convenient, and support SSH2.0, SSL, etc. to ensure security of management.convenient, and support SSH2.0, SSL, etc. to ensure security of management.
Hardware specification
| Items | E680-32C | E680-24Q | E680-48X6Q | E680-48Y8C | E680-48X8C | E680-24Y4C | |
| Size (H×W×D) | 4.4 x 44.2 x 47.1 cm (1.7 x 17.4 x 18.5 in.) | 4.4 x 44.2 x 45.1 cm (1.7 x 17.4 x 17.8 in.) | |||||
| Weight | 8.8KG | 9.0KG | 8.15KG | 8.85KG | 8.85KG | 8.35KG | |
| RS-232 Serial Ports | 1 RJ-45 port located at the left side of front panel | 1 RJ-45 Ports located at the left side of rear panel | |||||
| Management Ports | 1 RJ-45 out-of-band management port located at the left side of front panel | 1 RJ-45 out-of-band management Ports located at the left side of rear panel | |||||
| USB Ports | 1 Type-A USB port located at the left side of front panel | Not Support | 1 Type-A USB Ports located at the left side of Rear panel | ||||
| 10/100/1000Mb Base-T Ports | – | – | – | – | – | – | |
| 100/1000Mb Base-T PoE Ports | – | – | – | – | – | – | |
| 1Gb SFP Ports | – | – | – | – | – | – | |
| 2.5GbE Base-T Ports | – | – | – | – | – | – | |
| 10GbE SFP+ Ports | – | – | 48 | – | 48 | – | |
| 25GbE SFP28 Ports | – | – | – | 48 | – | 24 | |
| 40GbE QSFP+ Ports | – | 16 | 6 | – | – | – | |
| 100GbE QSFP28 Ports | 32 | 8 | – | 8 | 8 | 4 | |
| Latency | 700 ns | ||||||
| CPU | Dual core, ARM A53 | ||||||
| Memory | 2GB | ||||||
| Flash | 8GB | ||||||
| Packet Buffer Memory | 36MB | ||||||
| Power supply | AC | Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz | |||||
| DC | Maximum Voltage: -40 ~ -72V | ||||||
| HVDC | Maximum Voltage: 180 ~ 300V | ||||||
| Dual Power Input | Support | ||||||
| Power Supply Module Pluggable | Support | ||||||
| Airflow Option | Front-to-Rear Airflow | ||||||
| Fans Quantity | 4 | ||||||
| Hot-swappable Fans | Support | ||||||
| Typical Power Draw | 172W | 112W | 100W | 125W | 125W | 95W | |
| Max Power Draw | 224W | 171W | 145W | 160W | 160W | 130W | |
| PoE Power Budget | – | – | – | – | – | – | |
| MTBF(Hour) | >158045 | >70080 | >70080 | >162213 | >162213 | >198000 | |
| MTBF(Year) | >18.0 | >8.0 | >8.0 | >18.5 | >18.5 | >22.6 | |
Software specification
| Class | Feature | Description | Default Profile | IPv6 Profile | Layer3 Profile | Ipran Profile |
| Ethernet basic | Jumbo frame | Maximum jumbo frame size | 9600 | 9600 | 9600 | 9600 |
| Unicast MAC | MAC address capacity | 122880 | 73728 | 73728 | 65536 | |
| MAC learning rate (SW) | > 4000pps | |||||
| MAC learning rate (HW) | > 10Gbps | |||||
| Blackhole MAC address capacity | 128 | 128 | 128 | 128 | ||
| Multicast MAC | MAC address capacity | 2048 | 1024 | 1024 | 2048 | |
| VLAN | VLAN IDs | 4094 | 4094 | 4094 | 4094 | |
| VLAN instances | 4094 | 4094 | 4094 | 4094 | ||
| VLANs to enable statistics | 256 | 256 | 256 | 256 | ||
| VLAN mapping | Maximum mapping table | 64 | 64 | 64 | 64 | |
| Maximum rules number | 3072 | 3072 | 3072 | 3072 | ||
| EVC | Maximum EVC number | 4094 | 4094 | 4094 | 4094 | |
| Link aggregation (Static & LACP) | Maximum member number per group | No limitation | ||||
| Maximum group number | 64 | 64 | 64 | 64 | ||
| Load balance key mode | static/dlb/rr/resilient/self-healing | |||||
| Convergence time | < 50ms | |||||
| VLAN classification | Maximum rule number | 4096 | 4096 | 4096 | 4096 | |
| Maximum group number | 1 | 1 | 1 | 1 | ||
| MAC based rule capacity | 512 | 384 | 512 | 512 | ||
| IPv4 based rule capacity | 448 | 256 | 1024 | 512 | ||
| IPv6 based rule capacity | 32 | 256 | 0 | 0 | ||
| Protocal based rule capacity | 7 | 7 | 7 | 7 | ||
| Ethernet ring protection | STP | Convergence time | < 30s | |||
| RSTP | Convergence time | < 1s | ||||
| MSTP | MSTP instance number | 64 | ||||
| Convergence time | < 1s | |||||
| ERPS | Maximum domain number | 16 | ||||
| Ring number | 1 Primary ring/domain 2 Sub ring/domain | |||||
| Maximum protection instance number per ring | 64 | |||||
| Switchover time | < 50 ms | |||||
| G.8031 | Group number | 256 | N/A | N/A | 16 | |
| Switchover time | < 50 ms | N/A | N/A | < 50 ms | ||
| G.8032 | Rings | 128 | N/A | N/A | 16 | |
| Maximum member ports per Ring | 256 | N/A | N/A | 32 | ||
| Switchover time | < 50 ms | N/A | N/A | < 50 ms | ||
| Ethernet OAM | CFM(802.1ag) | Maximum session number | 512 | |||
| Maximum domain number | 8 | |||||
| CCM interval types | 7 | |||||
| CCM minimum interval | 3.3ms | |||||
| Maxinum LM number | 256 | |||||
| Maxinum LCK number | 24 | |||||
| Maxinum MIP number | 40 | |||||
| Maximum down MEP number | 1024 | |||||
| Maximum up MEP number | 1024 | |||||
| Maximum LMEP number | 1024 | |||||
| IPv4 unicast | ARP | ARP capacity | 16384 | 8192 | 20480 | 8192 |
| IPv4 | FIB | 60K | 36K | 60K | 32K | |
| ECMP | ECMP group | 240 (Share with IPv6) | ||||
| PBR | Policy route map | 64 | ||||
| Policy based routing ACE | 1024 | 512 | 1024 | 512 | ||
| OSPF | Maximum static neighbors | 256 | ||||
| Maximum summary address | 2048 | |||||
| IPv4 multicast | IPMC | Multicast routing table | 2048 | 1024 | 2048 | 1024 |
| Multicast routing downstream interfaces | 4096 | 2048 | 5120 | 2048 | ||
| IGMP snooping | Maximum groups number | 2048 | ||||
| Maximum member number | 8192 | |||||
| MVR | Maximum group number | 2048 | 1024 | 2048 | 1024 | |
| Maximum member number | 4096 | 2048 | 4096 | 2048 | ||
| IPv6 unicast | Host route | NDP capacity | 4096 | 8192 | 1024 | 2048 |
| IPv6 | FIBv6 | 4096 | 16384 | 1024 | 2048 | |
| ECMP group | 240 (Share with IPv4) | |||||
| IPv6 multicast | IPMC | Multicast routing table | 256 | 512 | 0 | 0 |
| Number of interfaces that support multicast routing table | 512 | 1024 | 0 | 0 | ||
| MVR v6 | Maximum entry number | 256 | 512 | 0 | 0 | |
| Maximum member number | 512 | 1024 | 0 | 0 | ||
| IP tunnel | IP tunnel | Tunnel peer capacity | 8 | 8 | 8 | 8 |
| QoS | Per-port queue number | Unicast queue | 8 | |||
| Multicast queue | 1 | |||||
| Monitor queue | 1 | |||||
| Packet buffer | System packet buffer capacity | 36MByte | 36MByte | 36MByte | 36MByte | |
| Granularity | Policer granularity | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 120K 2G~4G: 250K 4G~10G: 500K 10G~40G: 1000K 40G~100G: 2000K 大于100G: 4000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 120K 2G~4G: 250K 4G~10G: 500K 10G~40G: 1000K 40G~100G: 2000K 大于100G: 4000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 120K 2G~4G: 250K 4G~10G: 500K 10G~40G: 1000K 40G~100G: 2000K 大于100G: 4000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 120K 2G~4G: 250K 4G~10G: 500K 10G~40G: 1000K 40G~100G: 2000K 大于100G: 4000K | |
| Queue shape granularity | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 500K 2G~4G: 1000K 4G~10G: 2000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 500K 2G~4G: 1000K 4G~10G: 2000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 500K 2G~4G: 1000K 4G~10G: 2000K | 0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 500K 2G~4G: 1000K 4G~10G: 2000K | ||
| Port shape granularity | 10k | 10k | 10k | 10k | ||
| Flow entry | Ingress port QoS ipv4 flow entries | 6126 | 6126 | 6126 | 6126 | |
| Ingress port QoS ipv6 flow entries | ||||||
| Ingress port QoS flow stats entries | 6144 | 6144 | 6144 | 6144 | ||
| ACL | IPv4 ACL | Ingress port acl for IPv4 | 5949 | 5949 | 5952 | 5952 |
| Ingress VLAN acl for IPv4 | ||||||
| Egress port acl for IPv4 | 1901 | 1901 | 1952 | 1952 | ||
| Engress VLAN acl for IPv4 | ||||||
| IPv6 ACL | Ingress port acl for IPv6 | 5949 | 5949 | 5952 | 5952 | |
| Ingress VLAN acl for IPv6 | ||||||
| Egress port acl for IPv6 | 1901 | 1901 | 1952 | 1952 | ||
| Egress VLAN acl for IPv6 | ||||||
| MAC ACL | Ingress port acl for MAC | 5949 | 5949 | 5952 | 5952 | |
| Ingress VLAN acl for MAC | ||||||
| Egress port acl for MAC | 1901 | 1901 | 1952 | 1952 | ||
| Egress VLAN acl for MAC | ||||||
| ACL flow stats | Ingress acl flow stats entries | 5949 | 5949 | 5952 | 5952 | |
| Engress acl flow stats entries | 2048 | 2048 | 2048 | 2048 | ||
| CoPP | CoPP rules | 4072 | 4072 | 4076 | 4076 | |
| CoPP flow stats entries | 4072 | 4072 | 4076 | 4076 | ||
| UDF | UDF rules | 1024 | 1024 | 1024 | 1024 | |
| UDF flow stats entries | 1024 | 1024 | 1024 | 1024 | ||
| Security | IP source guard | IPv4 maximum rules number | 2048 | 1024 | 2048 | 1024 |
| IPv6 maximum rules number | 1024 | 2048 | 0 | 1024 | ||
| MAC based 802.1X | Maximum entries | 512 | 512 | 512 | 512 | |
| DHCP-snooping | Maximum bound entry | 4096 | ||||
| IPFIX | IPFIX | Ingress IPFIX entries | 65536 | |||
| Ingress IPFIX resource | 2048 | |||||
| Reliability | BFD | Maximum session number | share 256 | |||
| S-BFD | Maximum session number | |||||
| VRRP | Maximum group number | 255 | ||||
| Smart link | Maximum group number | 16 | ||||
| Maximum instance number | 64 | |||||
| Switchover time | <50ms | |||||
| Monitor link | Maximum group number | 16 | ||||
| Maximum up-link number per group | 24 | |||||
| Maximum down-link number per group | 24 | |||||
| MLAG | Maximum MLAG group number | 63 | ||||
| Metro | MPLS | Maximum MPLS FTN number | N/A | N/A | N/A | share with ipv4 route |
| Maximum MPLS ILM number | N/A | N/A | N/A | 12288 | ||
| VPWS | Maximum VPWS number | N/A | N/A | N/A | 1024 | |
| VPLS | VSI number | N/A | N/A | N/A | 64 | |
| VPLS MAC learning number | N/A | N/A | N/A | share with non-mpls mac | ||
| LDP | Maximum label number | N/A | N/A | N/A | 12288(Share with static entries） | |
| Virtual Network features | VARP | Virtual IP number per Port | 15 | 15 | 15 | 15 |
| VXLAN | VXLAN tunnel | 24576 | 24576 | 24576 | 4096 | |
| VNI | 4092 | 4092 | 4092 | 2000 | ||
| VTEP peer | 1024 | 1024 | 1024 | 128 | ||
Performance specifications
| Performance | E680-32C | E680-24Q | E680-48X6Q | E680-48Y8C | E680-48X8C | E680-24Y4C | |
| Line speed forwarding | Switch capability | 6.4 Tbps | 1.92 Tbps | 1.44 Tbps | 4 Tbps | 2.56 Tbps | 2 Tbps |
| Throughput | 3571.20 Mpps | 1428.48 Mpps | 1071.36 Mpps | 2976.00 Mpps | 1904.64 Mpps | 1488.00 Mpps | |
Environmental characteristics
| Description | Specification |
| Operating Temperature | 0 to 45 ºC |
| Storage Temperature | -40 to 70 ºC |
| Relative Humidity | 0 to 95% (non-condensing) |
Safety and compliance
| Product Number | E680-32C | E680-24Q | E680-48X6Q | E680-48Y8C | E680-48X8C | E680-24Y4C |
| Certifications | CQC CE-LVD CE-EMC FCC FCC ICES ETL | |||||
| Safety | ETL: UL 62368-1:2014 Ed.2 CB: IEC 62368-1:2014 CE-LVD: EN 62368-1: 2020+A11:2020 EN62479:2010 CQC: GB4943.1-2011 GB/T9254-2021 | |||||
| EMC | CE-EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 FCC: 47CFR Part 15 (2020) ANSI C63.4 (2014) ICES-003 Issue 7 | |||||
| Environmental | RoHS: 2011/65/EU and (EU)2015/863 | |||||
Warranty
| Description | Specification |
| Warranty | Limited warranty |
Original Application
Use high density 100G device (E680-32C) as the core level (Spine); Use high density 25G device (E680-48Y8C) as the access level (Leaf). This is a high density server access solution.
Figure 1: Original Application
Overlay Application
Use high density 100G device (E680-32C) as the core level (Spine); Use high density 25G device (E680-48Y8C) as the access level (Leaf). This is a VxLAN solution.
Figure 2: VxLAN Application
Product Model
| Product Number | Description |
| E680-32C | Standard 1U 19” rack mountable 32 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| E680-48Y8C | Standard 1U 19” rack mountable 48 x 25GE SFP28 Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| E680-48X8C | Standard 1U 19” rack mountable 48 x 10GE SFP+ Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| E680-24Y4C | Standard 1U 19” rack mountable 24 x 25GE SFP28 Ports 4 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| E680-48X6Q | Standard 1U 19” rack mountable 48 x 10GE SFP+ Ports 6 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
| E680-24Q | Standard 1U 19” rack mountable 16 x 40GE QSFP+ Ports 8 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear Airflow, Modular Fan |
