Introduction

The E530 Series Routing Switches (whose abbreviation is “E530”) are high performance 1GE/2.5GE/10GE/25GE/40GE/100GE switches designed based on ethernet switching chip CTC7132.

E530’s CentecOS system software supports mainstream protocols and applications which can be conveniently deployed and managed.

E530 currently provide the following configurations: E530-24X2C, E530-24X2Q, E530-48T4X, E530-48S4X, E530-24T8X, E530-16T16XY2Q, E530-48P6Y, E530-24P6Y, E530-4T12X, E530-6Q2C-BF, E530-48M4Y2Q-BF, E531-48M4Y2Q-BF, E530-8X6Q-I-CF, E520-8T4X-I-CF, E520-8T4X-2LI-CF.

Features

Based on High performance chip

E530 series routing switches, which are designed based on Ethernet switching chip CTC7132. The CTC7132 is high-performance chip which help the E530 to meet the requirement of Enterprise/HCI networks.

Varied Port Types

Support 1G / 2.5G / 10G / 25G / 40G / 100G ports to meet different network requirements.

System Design for Green and Energy Saving

Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving network.

Customized Profile for Different Deployment Scenarios

The Flexible Table Management (FTM) technology offers multiple table size configuration profiles as optimized choices for different network scenarios.

Intelligent Ethernet OAM: completed network fault management and performance guaranty

With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.

The fault management technique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.

E530 Support remote management，network monitoring，network fault indication，remote loopback and MIB parameter retrieval according to the standard 802.3ah EFM.

Virtual Network and Intelligent Lossless Network Features

E530 support leading edge technology: Priority Flow Control (PFC), explicit Congestion Notification (ECN), etc.

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

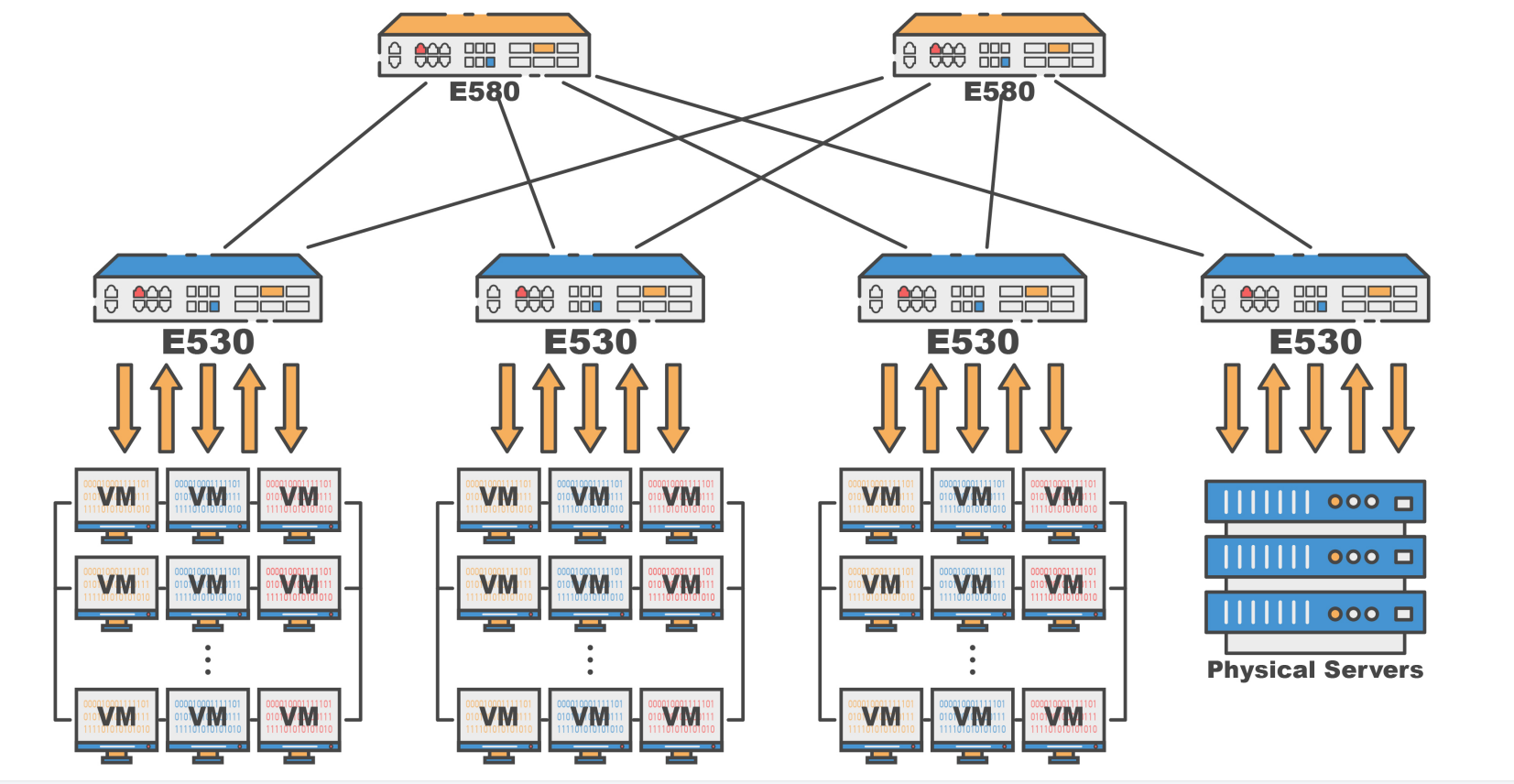

Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire Ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.

E530 supports RPC-API for SDN (Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.

High Reliability

E530 is powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy；Fans support 2+1 redundancy；Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.

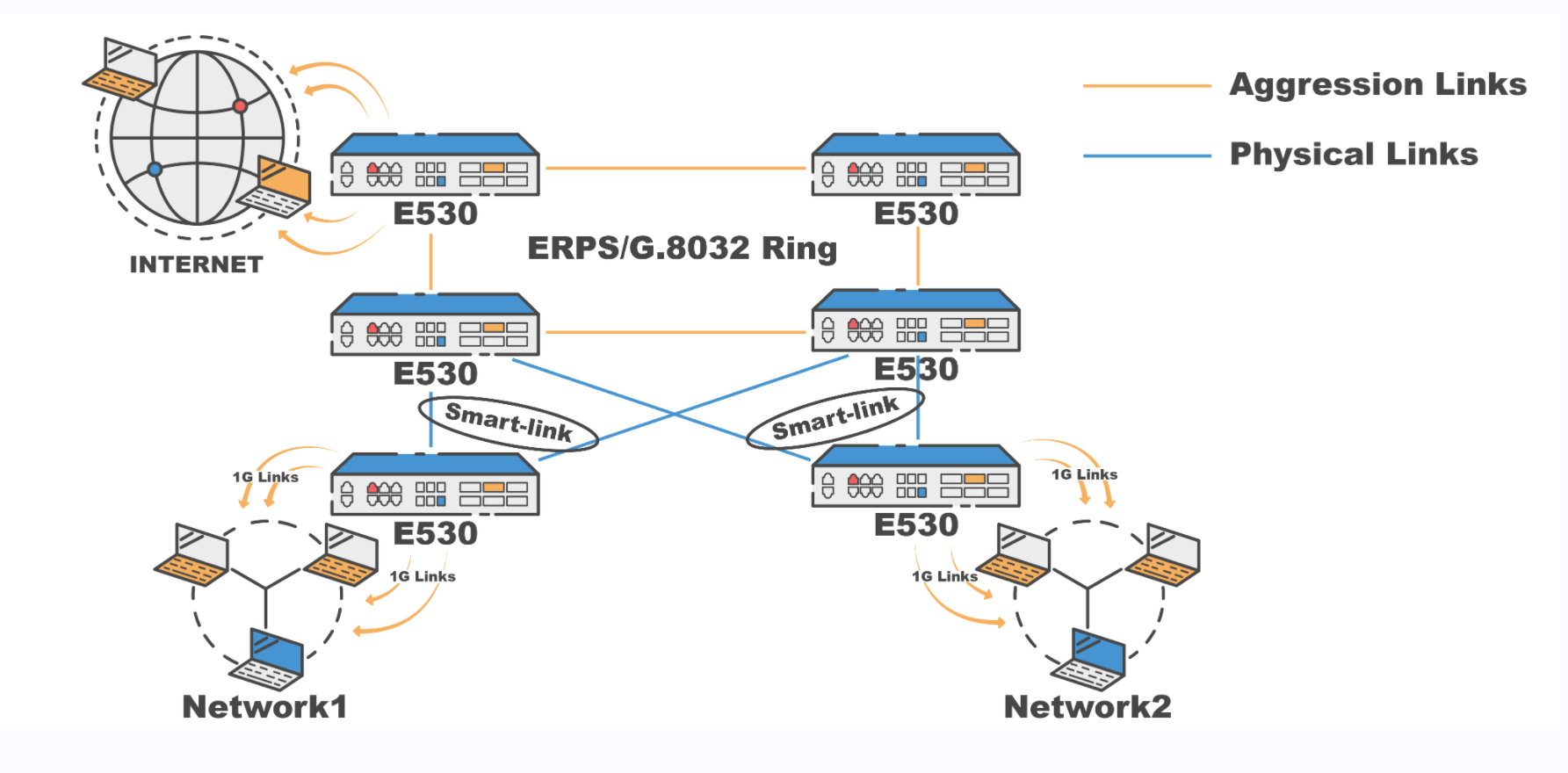

Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.

Patented technology “Sysmon” for CPU status monitoring can take action when system is error.

Outstanding QoS Control

E530 provides 10hardware queues per-port (8 unicast queues, 1 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.

Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.

Triple-play Service Support with Bandwidth Guaranty for High Quality Application

E530 offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.

Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With CentecOS software, IPTV service and multicast latency control are fully supported.

Comprehensive Network Security Policy

E530 supports subscriber-class / switch-class / network-class security control.

IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.

ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm Contbiwurol and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.

Convenient Management features

Support varied management interfaces, include console port / inband network ports / outband network port / USB port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, SSL, etc. to ensure security of management.

Hardware specification

Part1

Items		E530 -24X2C	E530 -24X2Q	E530 -48T4X	E530 -48S4X	E530 -16T16XY2Q	E530 -24T8X
Size (H×W×D)		4.4 x 44.2 x 37.8 cm (1.7 x 17.4 x 14.9 in.)					4.4 x 44.2 x 24.5 cm (1.7 x 17.4 x 9.7 in.)
Weight		5.95KG	5.95KG	5.10KG	6.25KG	6.10KG	3.60KG
RS-232 Serial Ports		1 RJ-45 port located at the left side of front panel
Management Ports		1 RJ-45 out-of-band management port located at the left side of front panel
USB Ports		1 Type-A USB port located at the left side of front panel
10/100/1000Mb Base-T Ports		–	–	48	–	16	24
100/1000Mb Base-T PoE Ports		–
1Gb SFP Ports		–	–	–	48	–	–
10GbE SFP+ Ports		24	24	4	4	8	8
25GbE SFP28 Ports		–	–	–	–	8	–
40GbE QSFP+ Ports		–	2	–	–	2	–
100GbE QSFP28 Ports		2	–	–	–	–	–
Latency		660ns
CPU		SOC(Dual core, ARM A53)
Memory		2GB
Flash		8GB(eMMC)
Packet Buffer Memory		9MB
Power supply	AC	Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz
	DC	Operating Voltage: -36V ~ -72V					–
	HVDC	–
Dual Power Input		Support
Power Supply Module Pluggable		Support					NOT Support (Fixed power supply)
Airflow Option		Front-to-Rear/Rear-to-Front Airflow
Fans Quantity		3					2
Hot-swappable Fans		Not Support (Fixed Fan)
Typical Power Draw		44W	44W	42W	58W	48W	41W
Max Power Draw		59W	59W	55W	70W	67W	55W
PoE Power Budget		–
MTBF(Hour)		206988	206988	204935	189901	>70080	215299
MTBF(Year)		23.63	23.63	23.39	21.68	>8	24.58

Part2

Items		E530 -48P6Y	E530 -24P6Y	E531 -48M4Y2Q -BF	E530 -48M4Y2Q -BF	E530 -6Q2C -BF	E530 -4T12X
Size (H×W×D)		4.4× 44.2× 43.5 cm (1.7× 17.4× 17.1 in.)	4.4× 44.2× 40.5 cm (1.7× 17.4 × 15.9 in.)	4.4× 44.2 × 29.0 cm (1.7 x 17.4 x 11.4 in.)	4.4 × 44.2 × 37.9 cm (1.7 x 17.4 x 14.9 in.)	4.4 × 21.5 × 35.5 cm (1.7 × 8.5 × 14.0 in.)	4.0 × 44.0 × 22.0 cm (1.6 × 17.3 × 8.7 in.)
Weight		9.056KG	7.969KG	4.10KG	4.10KG	3.30KG	2.80KG
RS-232 Serial Ports		1 RJ-45 port located at the left side of front panel					1 RJ-45 port located at the right side of front panel
Management Ports		1 RJ-45 out-of-band management port located at the left side of front panel					1 RJ-45 out-of-band management port located at the right side of front panel
USB Ports		1 Type-A USB port located at the left side of front panel		Not Support		1 Type-A USB port located at the left side of front panel	Not Support
10/100/1000Mb Base-T Ports		48	24	–	–	–	4
10/100/1000/2.5G/5G/10G BASE-T Ports		–	–	48	48	–	4
10GbE SFP+ Ports		–	–	–	–	–	12
25GbE SFP28 Ports		6	6	4	4	–	–
40GbE QSFP+ Ports		–	–	2	2	6	–
100GbE QSFP28 Ports		–	–	–	–	2	–
PoE Ports (MAX 15.4W/Port)		-48	24	–	–	–	–
Latency		660ns				960ns	660ns
CPU		SOC(Dual core, ARM A53)
Memory		1GB		2GB
Flash		8GB(eMMC)
Packet Buffer Memory		9MB
Power supply	AC	Operating Voltage: 100 ~ 240V;Maximum Voltage: 90 ~ 264V; 47~63Hz (Inner adapter: 54V/13.2A 12V/7.5A 800W)	Operating Voltage: 100 ~ 240V;Maximum Voltage: 90 ~ 264V; 47~63Hz (Inner adapter: 54V/7.5A 12V/5A 465W)	Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz
	DC	–			Operating Voltage: -36V ~ -72V		–
	HVDC	Not Support			Maximum Voltage: 180 ~ 300V		Not Support
Dual Power Input		Support		NOT Support (Single power supply)	Support	NOT Support (Single power supply)
Power Supply Module Pluggable		NOT Support (Fixed power supply)			Support		NOT Support (Fixed power supply)
Airflow Option		Front-to-Rear Airflow					Left-to-Right Airflow
Fans Quantity		3		4		2
Hot-swappable Fans		Not Support (Fixed Fan)			2*Hot-swappable Fan Module (2 Fans Per Module)	1* hot-swap Fan Module(2 fan inside)	Not Support (Fixed Fan)
Typical Power Draw		54.5W	44.5W	57W	57W	55W	33W
Max Power Draw		79W	64.5W	66W	66W	75W/td>	43W
PoE Power Budget		740W	370W	–	–	–	–
MTBF(Hour)		>50000
MTBF(Year)		>5.71

Part3

Items			E530-8X6Q-I-CF	E520-8T4X-I-CF	E520 -8T4X -2LI -CF
Size (H×W×D)			6.6 x 34.5 x 38.5 cm	15.5 x 12.8 x 11 cm
Weight			5KG	3KG
RS-232 Serial Ports			1 RJ-45 Console port located at the right side of rear panel	1 MICRO-USB Console port located at the top panel
Management Ports			1 RJ-45 out-of-band management port located at the right side of rear panel	1 RJ-45 out-of-band management port located at the top panel
USB Ports			1 Type-A USB port located at the right side of rear panel	1 Type-A USB port located at the left side of front panel
Bypass Ports			–		Support 2-channel signle-mode BiDi bypass. Support LC connector
10/100/1000Mb Base-T Ports			–	8
10GbE SFP+ Ports			8	4
40GbE QSFP+ Ports			6	–
Latency			660ns
CPU			SOC(Dual core, ARM A53)
Memory			2GB
Flash			8GB(eMMC)
Packet Buffer Memory			9MB	3MB
Power supply	AC	7 pin 5.08mm terminal block. Alarm connection：3 pin 5.08mm terminal block（share the same terminal block of power connection）
	DC	–
	HVDC	–
Dual Power Input			NOT Support (Single power supply)
Power Supply Module Pluggable			NOT Support (Fixed power supply)
Airflow Option			Front-to-Rear Airflow	N/A
Fans Quantity			4	0
Hot-swappable Fans			Not Support (Fixed Fan)	N/A
Max Power Draw			60W
MTBF(Hour)			>100000
MTBF(Year)			>11.5

Software specification

Features			E530 (V7.4)					Note
Class	Feature	Description	Default Profile	Extended-buffer	IPv6 Profile	Layer3 Profile	Ipran Profile
Ethernet basic	Jumbo frame	Maximum jumbo frame size	9600	9600	9600	9600	9600
	Unicast MAC	MAC address capacity	98304	12288	98304	98304	98304
		MAC learning rate (SW)	> 4000pps
		MAC learning rate (HW)	> 10Gbps
		Blackhole MAC address capacity	128
	Multicast MAC	MAC address capacity	2048	1024	1024	1024	2048
	VLAN	VLAN IDs	4094
		VLAN instances	4094
		VLANs to enable statistics	256
	VLAN mapping	Maximum mapping table	64
		Maximum rules number	1024
	EVC	Maximum EVC number	4094
	Link aggregation (Static & LACP)	Maximum member number per group	128
		Maximum group number	64
		Load balance key mode	static/dlb/rr/resilient/self-healing
		Convergence time	< 50ms
	VLAN classification	Maximum rule number	4096
		Maximum group number	1
		MAC based rule capacity	512	512	384	512	512
		IPv4 based rule capacity	448	448	256	1024	512
		IPv6 based rule capacity	32	32	256	0	0
		Protocal based rule capacity	7
Ethernet ring protection	STP	Convergence time	< 30s
	RSTP	Convergence time	< 1s
	MSTP	MSTP instance number	64
		Convergence time	< 1s
	ERPS	Maximum domain number	16
		Ring number	1 Primary ring/domain 2 Sub ring/domain
		Maximum protection instance number per ring	64
		Switchover time	< 50 ms
	G.8031	Group number	256	256	0	0	16
		Switchover time	< 50 ms
	G.8032	Rings	128	128	0	0	16
		Maximum member ports per Ring	256	256	0	0	32
		Switchover time	< 50 ms
Ethernet OAM	CFM(802.1ag)	Maximum session number	512
		Maximum domain number	8
		CCM interval types	7
		CCM minimum interval	3.3ms
		Maximum down MEP number	1024
		Maximum up MEP number	1024
		Maximum LMEP number	1024
IPv4 unicast	ARP	ARP capacity	12288	4096	6144	16384	12288
	IPv4	FIB	57344	28672	12288	57344	57344
	ECMP	ECMP group	240 (Share with IPv6)
	PBR	Policy route map	64
		Policy based routing ACE	256	256	128	256	128
	OSPF	Maximum static neighbors	256
		Maximum summary address	2048
IPv4 multicast	IPMC	Multicast routing table	2048	512	1024	2048	1024
		Multicast routing downstream interfaces	4096	1024	2048	5120	2048
	IGMP snooping	Maximum groups number	2048
		Maximum member number	8192
	MVR	Maximum group number	2048	512	1024	2048	1024
		Maximum member number	4096	1024	2048	4096	2048
IPv6 unicast	Host route	NDP capacity	2048	1024	4096	0	2048
	IPv6	FIBv6	4096	1024	6144	0	1024
		ECMP group	240 (Share with IPv4)			0	240
IPv6 multicast	IPMC	Multicast routing table	256	256	512	0	0
		Number of interfaces that support multicast routing table	512	512	1024	0	0
	MVR v6	Maximum entry number	256	0	512	0	0
		Maximum member number	512	0	1024	0	0
IP tunnel	IP tunnel	Tunnel peer capacity	8
QoS	Per-port queue number	Unicast queue	8
		Multicast queue	1
		Monitor queue	1
	Packet buffer	System packet buffer capacity	4.5MByte	9MByte	4.5MByte	4.5MByte	4.5MByte
	Granularity	Policer granularity	0~2M: 10K 2M~100M: 40K 100M~1G: 80K 1G~2G: 120K 2G~4G: 250K 4G~10G: 500K
		Queue shape granularity
		Port shape granularity	10k
	Flow entry	Ingress port QoS ipv4 flow entries	1532
		Ingress port QoS ipv6 flow entries
		Ingress port QoS flow stats entries	128
ACL	IPv4 ACL	Ingress port acl for IPv4	2926			2976		Ingress and Egress ACL ruls use separate resouce pool. The Ingress IPv4/IPv6/MAC ACL rule share the Ingress resource and the Egress rules share the Egress resource.
		Ingress VLAN acl for IPv4
		Egress port acl for IPv4	878			928
		Engress VLAN acl for IPv4
	IPv6 ACL	Ingress port acl for IPv6	2926			0	0
		Ingress VLAN acl for IPv6				0	0
		Egress port acl for IPv6	878			0	0
		Egress VLAN acl for IPv6				0	0
	ACL flow stats	Ingress  acl flow stats entries	1022
		Engress  acl flow stats entries	1023
	CoPP	CoPP rules	249			250
		CoPP flow stats entries	249			250
	UDF	UDF rules	256
		UDF flow stats entries	64
Security	IP source guard	IPv4 maximum rules number	768		512	512	512
		IPv6 maximum rules number	64		128	0	0
	MAC  based 802.1X	Maximum entries	512	512	512	512	512
	DHCP-snooping	Maximum bound entry	4096
IPFIX	IPFIX	Ingress IPFIX entries	8192
		Egress IPFIX entries	8192
		Ingress IPFIX resource	512
		Egress IPFIX resource	512
Reliability	BFD	Maximum session number	share 128
	S-BFD	Maximum session number
	VRRP	Maximum group number	255
	Smart link	Maximum group number	16
		Maximum instance number	64
		Switchover time	<50ms
	Monitor link	Maximum group number	16
		Maximum up-link number per group	24
		Maximum down-link number per group	24
	MLAG	Maximum MLAG group number	63
Virtual Network	VARP	Virtual IP number per Port	15
	VXLAN	VXLAN tunnel	6144		4088		2040
		VNI	2000	2000	2000	2000	1000
		VTEP peer	1024	1024	1024	1024	256

Performance specification

Part1

Items		E530 -24X2C	E530 -24X2Q	E530 -48T4X	E530 -48S4X	E530 -16T16XY2Q	E530 -24T8X
Line speed forwarding	Switch capability	880 Gbps	640 Gbps	176 Gbps	176 Gbps	752 Gbps	208 Gbps
	Throughput	476.16 Mpps	476.16 Mpps	130.94 Mpps	130.94 Mpps	476.16 Mpps	154.75 Mpps

Part2

Items		E530 -48P6Y	E530 -24P6Y	E531 -48M4Y2Q -BF	E530 -48M4Y2Q -BF	E530 -6Q2C -BF	E530 -4T12X
Line speed forwarding	Switch capability	396 Gbps	348 Gbps	600 Gbps	600 Gbps	880 Gbps	248 Gbps
	Throughput	294.62 Mpps	258.91 Mpps	446.40 Mpps	446.40 Mpps	476.16 Mpps	184.51 Mpps

Part3

Items		E530 -8X6Q -I -CF	E520 -8T4X -I -CF	E520 -8T4X -2LI -CF
Line speed forwarding	Switch capability	640 Gbps	96 Gbps	96 Gbps
	Throughput	476.16 Mpps	71.42 Mpps	71.42 Mpps

Environmental characteristics

Description	Specification
Operating Temperature	0 to 45 ºC
Storage Temperature	-40 to 70 ºC
Relative Humidity	0 to 95% (non-condensing)

Safety and compliance

Product Number	E530-48S4X E530-48T4X E530-24X2C E530-24X2Q E530-16T16XY2Q	E530-24T8X
Certifications	CQC CB CE-LVD CE-EMC FCC FCC ICES ETL RoHS	CQC CE-LVD CE-EMC FCC FCC ICES ETL
Safety	ETL: UL 62368-1:2014 Ed.2CB: IEC 62368-1:2014CE-LVD: EN 62368-1: 2020+A11:2020EN62479:2010CQC: GB4943.1-2011GB/T9254-2008	ETL: UL 62368-1:2014 Ed.2CE-LVD: EN 62368-1: 20214+A11:2017EN62311:2008CQC: GB4943.1-2011GB/T9254-2008
EMC	CE-EMC: EN 55032:2015+A11:2020EN 55035:2017+A11:2020EN IEC 61000-3-2:2019EN 61000-3-3:2013+A1:2019FCC: 47CFR Part 15 (2020)ANSI C63.4 (2014)ICES-003 Issue 7	CE-EMC: EN 55032:2015EN 55024:2010EN 61000-3-2:2019EN 61000-3-3:2013+A1:2019FCC: 47CFR Part 15 (2019)ANSI C63.4 (2014)ICES-003 Issue6
Environmental	RoHS: 2011/65/EU and (EU)2015/863	N/A

Warranty

Description	Specification
Warranty	Limited warranty

Applications

HCI（Hyper-Converged Infrastructure）

E530 with 1GE + 10GE/25GE/40GE/100GE ports are suitable for HCI （Hyper-Converged Infrastructure）networks. Using 1GE ports for management network and using 10G/25GE/40GE/100G ports for data traffic network.

The following features of E530 are available for this case: VLAN, LACP, STP/RSTP/MSTP, MLAG, etc.


Figure 1: HCI networks with E530

Enterprise Network

E530 series provide 1GE/10GE/25GE/40GE/100GE ports for Access or Aggregation switches.

The following figure shows a deployment example using the E530 Series for Access network topology as TOR access devices The following features of E530 are available for this case: VLAN, LACP, RSTP&MSTP, MLAG, DCB Features (PFC/QCN/ETS), OSPF, QoS, Overlay(NVGRE/VXLAN/GENEVE), etc.

Figure 2: Servers Access Network with E530 Series

L2 Ring Network

Ring network topology allows service provider to establish robust network and operate multiple services.

The following figure shows the deployment example using the E530 Series for Metro L2 ring network topology as Aggregation or Access devices. The following features of E530 are available for this case: QinQ / ERPS / G.8032 / EFM / CFM / LACP / Smart-link, etc.

Figure 3: L2 Ring Network topology with E530 Series

Product Model

Product Number	Description
E530-24X2C	Standard 1U 19” rack mountable 24 x 10GE SFP+ Ports 2 x 100GE QSFP28 Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-24X2Q	Standard 1U 19” rack mountable 24 x 10GE SFP+ Ports 2 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-48T4X	Standard 1U 19” rack mountable 48 x 1GE Base-T Ports 4 x 10GE SFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-48S4X	Standard 1U 19” rack mountable 48 x 1GE SFP Ports 4 x 10GE SFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-24T8X	Standard 1U 19” rack mountable 24 x 1GE Base-T Ports 8 x 10GE SFP+ Ports Dual fixed AC power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-16T16XY2Q	Standard 1U 19” rack mountable 16 x 1GE Base-T Ports 8 x 10GE SFP+ Ports 8 x 25GE SFP28 Ports 2 x 40GE QSFP+ Ports Dual modular power supply Front-to-Rear/Rear-to-Front Airflow, Fixed Fan
E530-48P6Y	Standard 1U 19” rack mountable 48x1GE Base-T Ports (PoE 802.3af/at) 6 x 25GE SFP28 Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
E530-24P6Y	Standard 1U 19” rack mountable 24x1GE Base-T Ports (PoE 802.3af/at) 6 x 25GE SFP28 Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
E530-4T12X	Standard 1U 19” rack mountable 4 x 1GE Base-T Ports 12 x 10GE SFP+ Ports Single fixed AC power supply Left-to-Right Airflow, Fixed Fan
E530-6Q2C-BF	1U Half-width of 19” rack mountable 6 × 40GE QSFP+ Ports 2 × 100GE QSFP28 Ports Single modular power supply Front-to-Rear Airflow, Fixed Fan
E530-48M4Y2Q-BF	Standard 1U 19” rack mountable 48 × 2.5GE Base-T Ports 4 × 25GE SFP28 Ports 2 × 40GE QSFP+ Ports Dual modular power supply Front-to-Rear Airflow, Fixed Fan
E531-48M4Y2Q-BF	Standard 1U 19” rack mountable 48 × 2.5GE Base-T Ports 4 × 25GE SFP28 Ports 2 × 40GE QSFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
E530-8X6Q-I-CF	1.5U rack mountable 8 x 1GE/10GE SFP Ports 6 x 40GE/10GE QSFP+ Ports Single fixed AC power supply Front-to-Rear Airflow, Fixed Fan
E520-8T4X-I-CF	DIN-Rail mounting or Wall mounting 8×10/100/1000 Base-T Port 4x1GE/10GE SFP+ Port Single fixed AC power supply Fan less design
E520-8T4X-2LI-CF	DIN-Rail mounting or Wall mounting 8×10/100/1000 Base-T Port 4x1GE/10GE SFP+ Port Support 2-channel signle-mode BiDi bypass. Support LC connector Single fixed AC power supply Fan less design
