SIP-S02, Ceiling, Indoor, 50W, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S02
• Order(MOQ):1
• Payment:T/T,Western Union, Paypal
• Product Origin:China
• Color:White
• Lead Time：1 Week
• Weight：1900

Product Description

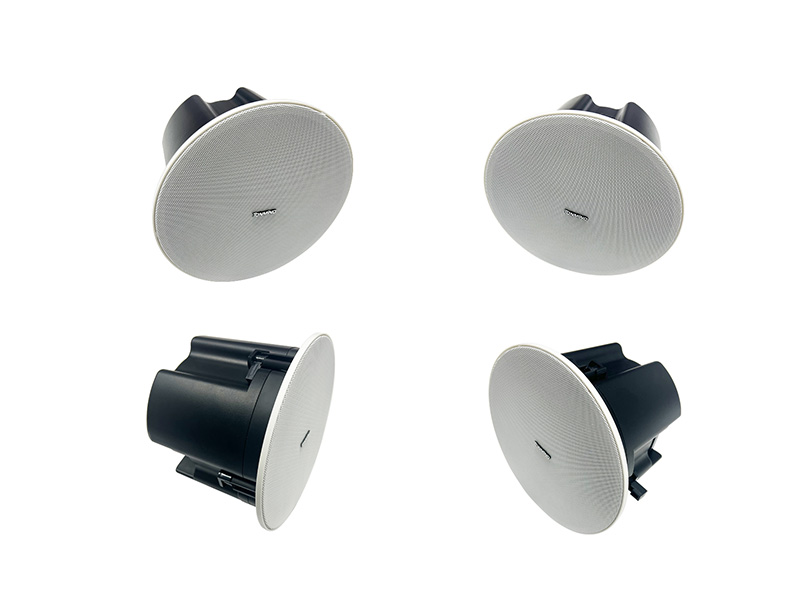

The IP Ceiling Speaker SIP-S02 is smooth design, which makes it nicely blending with its surroundings. It’s easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals.  It’s compatible with VoIP SIP devices and ONVIF VMS. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.

SIP Ceiling Speaker Feature

• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP

• Compatible with IP Camera VMS/NVR via ONVIF

• Support Pre-recorded messages

• Support HTTP API for alarm in transmit

• 48K OPUS Audio Codec

• 50W amplifier, PoE Power Supply

Specification

Audio
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Speaker
Max SPL	89dB
Frequency Response	80Hz ~ 20KHz
Frequency  Range	500-2KHZ      +-10dB 400-12KHZ    +-20dB
Harmonic Distortion	0.1@1kHz
Impedance	8Ω
Network
Security	Password protection, IP address filtering, Digest authentication, User access log
Network Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	10/100 Base-TX, RJ45
VoIP	Support for SIP protocol for intergration with VoIP systems,  intergrated with SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA
Amplifier
Amplifier	Built-in 50W Amplifier
General
Material	ABS
Rate Power	50W
Power Supply	PoE++ or DC24V
Installation	In Ceiling
Dimensions	Diameter 230 x 160 mm
Weight	1.9 KG
Languages	English
Warranty	2 years
Package Includes	Network Ceiling Speaker  Quick Start Guide

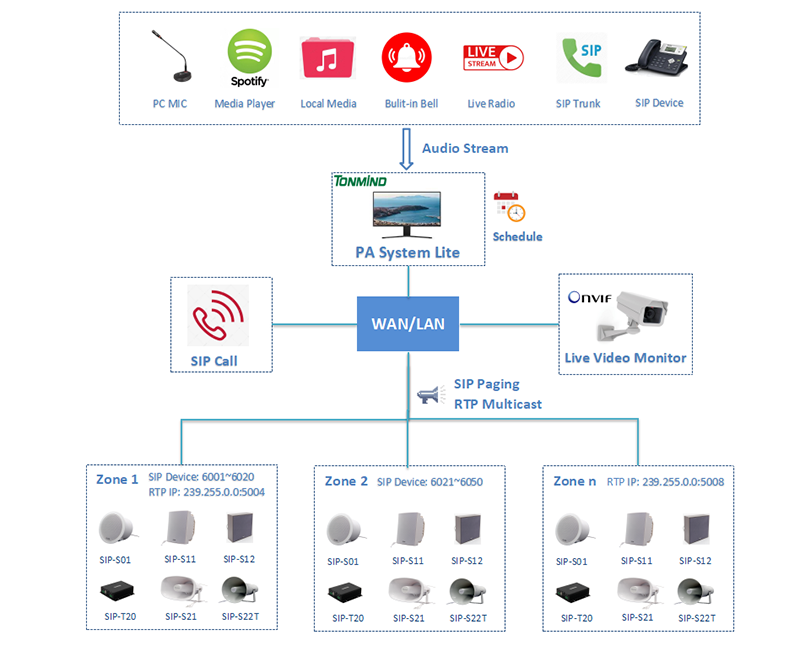

Software Diagram
