SIP-S31, Column, Outdoor, 40W, 60W, 80W,  SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S31F, SIP-S31S,
• Order(MOQ):10
• Payment:T/T, Western Union, Paypal
• Product Origin:China
• Color:White
• Lead Time：1 Week

Product Description

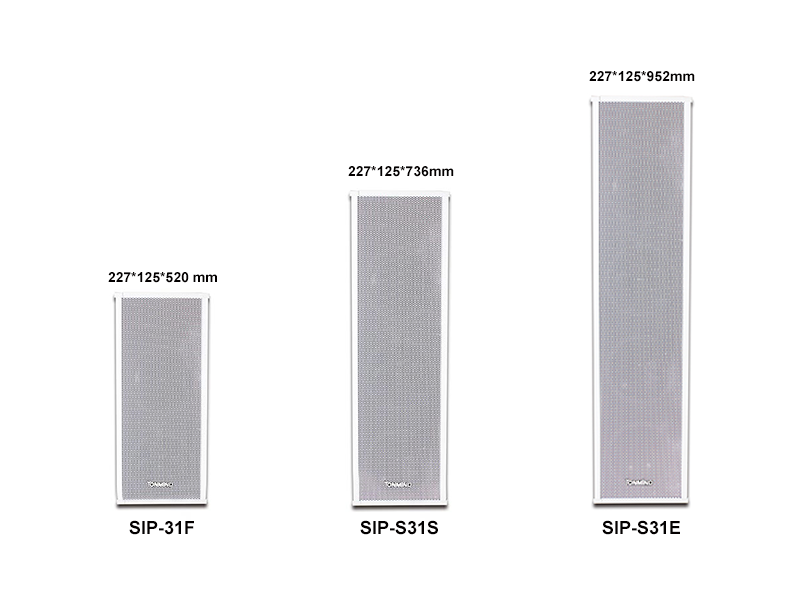

The IP Column Speaker has three versions, 40W SIP-S31F, 60W SIP-S31S, 80W SIP-S31E. With large rated power, it can transmit loud and powerful voice. It’s compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.

IP Column Speaker Feature

• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.

• Compatible with IP Camera VMS via ONVIF.

• Support Pre-recorded messages.

• Support HTTP API for alarm in transmit.

• 48K OPUS Audio Codec enables excellent sound quality.

• Optional with 40W, 60W, 80W.

Specification

Model	SIP-S31F	SIP-S31S	SIP-S31E
Rated Power	40W	60W	80W
Max SPL	108dB	112dB	116dB
Net Weight	5KG	6.8KG	8.6KG
Product Size	227*125*520 mm	227*125*736 mm	227*125*952 mm
Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
Network Interface	RJ45, 10BASE-T/100BASE-TX
Operating Temperature	’-30℃ — +60℃
Operating Humidity	5%-85%
Power	DC 12V/24V
Frequency Range	130Hz – 16kHz
Harmonic Distortion	0.1@1kHz
Signal to Noise Ratio	91dB
Type	Wall Mounted
Material	Aluminium Alloy
Function	Compatible with VoIP devices and ONVIF VMS/NVR, pre-recorded messages, schedule play, HTTP control, Alarm in.

Software Diagram
