30W SIP Wall Mounted Speaker
SIP-S11T, Wall, IP55 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
SIP-S11T, Wall, IP55 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
- Item NO.:SIP-S11T
- Order(MOQ):10
- Payment:T/T,Western Union, Paypal
- Product Origin:China
- Color:White
- Lead Time：1 Week
- Weight：3.75
Product Description
The IP Wall Mounted Speaker can be installed horizontally or vertically, which makes it easy to mount on the exterior of building such as under eave. It’s ideal for installation in school, offices, stores and hospitals. The bulit-in 30W amplifier transmitts loud and excellent voice. It can be applied to play background music, annoucements, security or fire alarm linkage. It supports http API control, alarm in and schedule play. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks.
SIP Wall Speaker Feature
• 30W speaker transfers lound and excellent sound.
• IP 55 waterproof design for installation on exterior of building.
• PoE eliminates need for local power supply.
• 48K OPUS Audio Codec enables excellent sound quality .
• Support web firmware upgrade for easy maintenance.
• Standard SIP protocol to compatible with other SIP devices.
• Compatible with IP Camera VMS via ONVIF.
• Support Pre-recorded messages.
• Support HTTP API for alarm in transmit.
• Suppurt RTP Multicast as alternation of SIP backend system.
Specification
| Audio | |
| Codec | OPUS 48K, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8kHz |
| Speaker | |
| Max SPL | 105dB |
| Frequency Response | 80Hz ~ 20KHz |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: G711U, G711A, GSM, MP3, WAV. |
| Amplifier | |
| Amplifier Description | Built-in 30W Amplifier |
| General | |
| Material | ABS (IP55 water-proof) |
| Rate Power | 30W |
| Power Supply | PoE or DC 12V/24V |
| Installation | Wall Mounted |
| Dimensions | 296 x 196 x 157 mm |
| Weight | 3.75 KG |
| Languages | English |
| Warranty | 2 years |
| Package Includes | IP Wall Mounted Speaker User Manual |

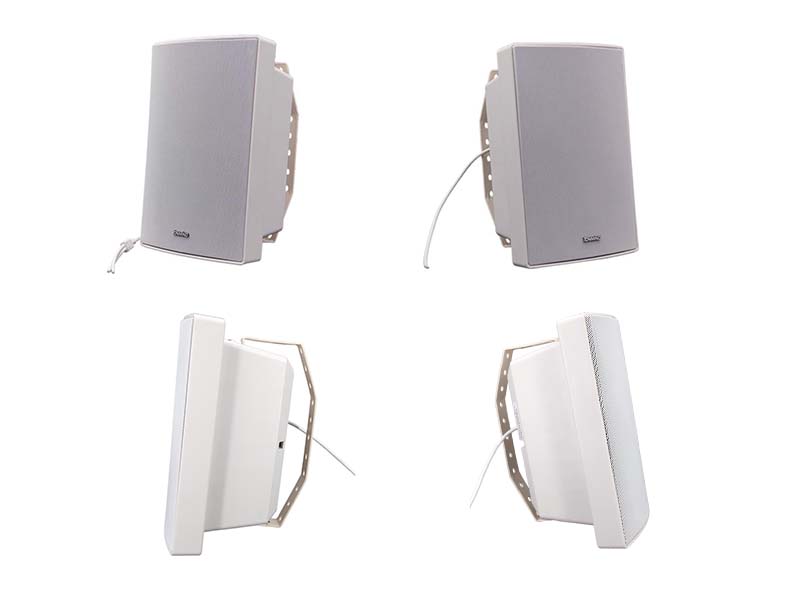

Product Image
