SIP-S21M, IP67 Waterproof, 30W, Built-in MIC, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Audio in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S21M
• Order(MOQ):10
• Payment:T/T,Western Union, Paypal
• Product Origin:China
• Color:White
• Lead Time：1 Week
• Weight：2

Product Description

The IP Horn Speaker SIP-S21M is nice looking with flat shape design. It’s perfect to install in ourdoor enviroment due to IP66 waterprood design.  With built-in MIC, it can support two-way intercom communication. It’s compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.

SIP Horn Speaker Feature

• Two-way intercom communication

• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP

• Compatible with IP Camera VMS/NVR via ONVIF

• Support Pre-recorded messages

• Support HTTP API for alarm in transmit

• 48K OPUS Audio Codec, AEC, AGC, ANR

• 30W amplifier, PoE Power Supply

• TF Card function optional

Specification

Audio
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Built-in MIC	Yes
Speaker
Max SPL	120dB
Frequency Response	350Hz ~ 8KHz
Frequency  Range	500-2KHZ      +-10dB 400-12KHZ    +-20dB
Harmonic Distortion	0.1@1kHz
Signal to Noise Ratio	91dB
Network
Security	Password protection, IP address filtering, Digest authentication, User access log
Network Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	10/100 Base-TX, RJ45
VoIP	Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier	Built-in 30W Amplifier
General
Material	ABS (IP66 water-proof)
Rate Power	30W
Power Supply	PoE or DC 12V/24V
Interface	GPIO Alarm in, Audio in, TF Card (optional)
Installation	Wall Mounted
Dimensions	285*205*290mm
Weight	2 KG
Languages	English
Warranty	2 years
Package Includes	Network Horn Speaker  Quick Start Guide

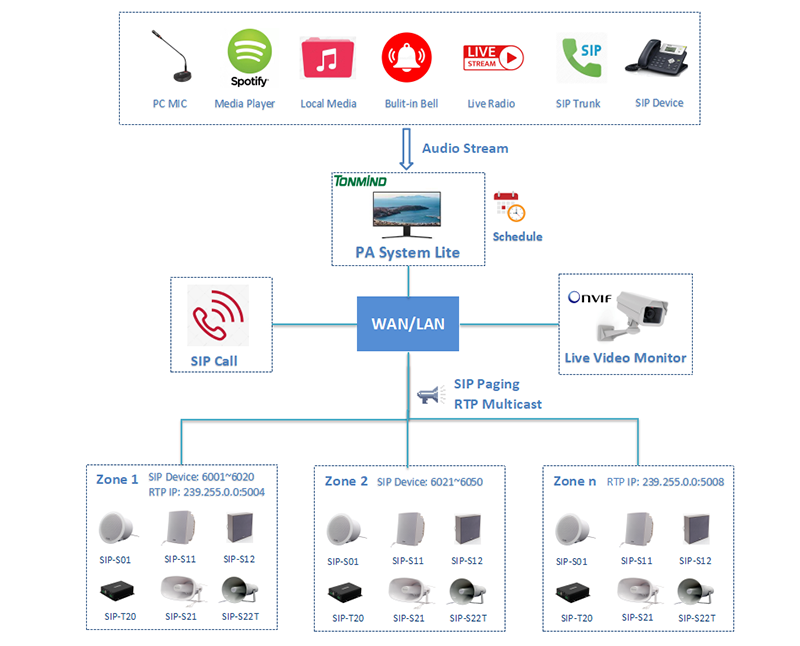

Software Diagram

Product Image
