SIP-S22T, IP67 Waterproof, 30W, PoE, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S22T
• Order(MOQ):10
• Payment:T/T,Western Union, Paypal
• Product Origin:China
• Color:Grey
• Lead Time：1 Week
• Weight：2 KG

Product Description

The IP Horn Speaker is nice looking with round shape design. It’s perfect to install in ourdoor enviroment due to IP67 waterproof design.  Built-in 30W aplifier delivers loud and excellent sound. It can be applied to play background music, annoucements, security or fire alarm linkage. It supports http API control, alarm in and schedule play. It is compatible with SIP & ONVIF protocols, enduring seamless integration with VoIP systems and security networks.

IP Based Speaker Feature

• Built-in 30W amplifier delivers loud and excellent sound.

• IP67 waterproof  design for installation in outdoors.

• PoE eliminates need for local power supply.

• 48K OPUS Audio Codec enables excellent sound quality .

• Support web firmware upgrade for easy maintenance.

• Standard SIP protocol to compatible with other SIP devices.

• Compatible with IP Camera VMS/NVR via ONVIF.

• Support Pre-recorded messages.

• Support HTTP API for alarm in transmit.

• Suppurt RTP Multicast as alternation of SIP backend system.

Specification

Audio
Codec	OPUS 48K, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8kHz
Speaker
Max SPL	120dB
Frequency Response	350Hz ~ 8KHz
Network
Security	Password protection, IP address filtering, Digest authentication, User access log
Network Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	10/100 Base-TX, RJ45
VoIP	Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier Description	Built-in 30W Amplifier
General
Material	ABS (IP67 water-proof)
Rate Power	30W
Power Supply	PoE or DC 12V/24V
Installation	Wall Mounted
Dimensions	246 x 292mm
Weight	2 KG
Languages	English
Warranty	2 years
Package Includes	SIP Horn Speaker  User Manual

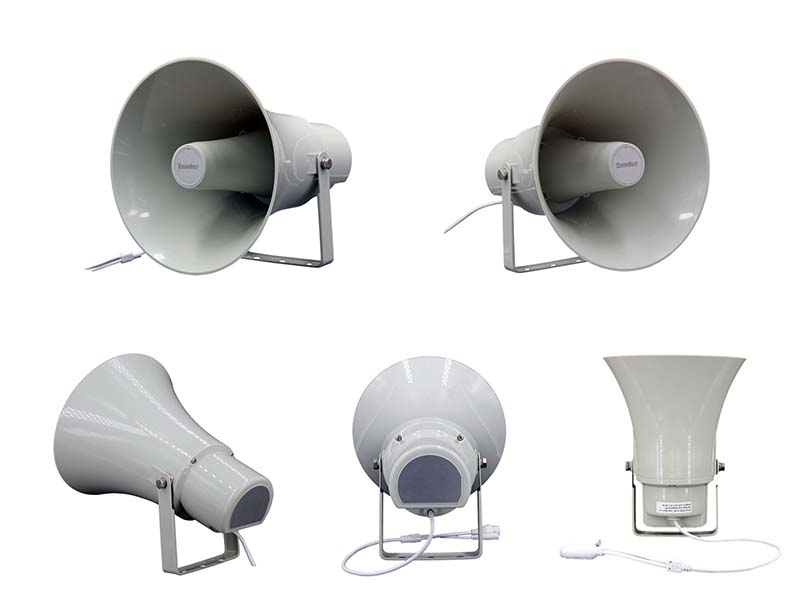

Product Image
