SIP-S11H, Wall, IP55 Waterproof, 15W, PoE, Built-in MIC, SIP & ONVIF Compatibility, HTTP API, Alarm in, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast

• Item NO.:SIP-S11H
• Order(MOQ):1
• Payment:T/T,Western Union, Paypal
• Product Origin:China
• Color:White
• Lead Time：1 Week
• Weight：3 KG

Product Description

The SIP-S11H IP Wall Speaker has a built-in MIC, which makes it flexible to make two-way intercom communication. The standard SIP protocal allows easy integration to other SIP devices, the standard ONVIF protocol enable easy integration with most brands IP camera VMS/NVR in the market. It can be installed horizontally or vertically, which makes it easy to mount on the exterior of building such as under eave. It’s ideal for installation in school, offices, stores and hospitals. This model with 48K OPUS Audio Codec enables excellent sound quality.  It can be applied to play background music, annoucements, security or fire alarm linkage.

SIP Speaker Wall Mounted Feature

• IP 55 waterproof design for installation on exterior of building.

• PoE eliminates need for local power supply.

• 48K OPUS Audio Codec enables excellent sound quality .

• Two-way intercom communication.

• Standard SIP protocol to compatible with other SIP devices.

• Compatible with IP Camera VMS/NVR via ONVIF.

• Support Pre-recorded messages.

• Support HTTP API for alarm in transmit.

• Suppurt RTP Multicast as alternation of SIP backend system.

Specification

Audio
Codec	OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz
MIC
Built-in MIC	Yes
Speaker
Max SPL	101dB
Frequency Response	80Hz ~ 20KHz
Frequency  Range	500-2KHZ      +-10dB 400-12KHZ    +-20dB
Harmonic Distortion	0.1@1kHz
Signal to Noise Ratio	91dB
Network
Security	Password protection, IP address filtering, Digest authentication, User access log
Network Protocol	SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP,  RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP
Network Interface	10/100 Base-TX, RJ45
VoIP	Support SIP protocol for intergration with VoIP systimes,  intergrated with SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV.
Amplifier
Amplifier	Built-in 15W Amplifier
General
Material	ABS (IP55 water-proof)
Rate Power	15W
Power Supply	PoE or DC 12V
Interface	Alarm in, DC Power, PoE
Installation	Wall Mounted
Dimensions	296*196*157mm
Weight	3KG
Languages	English
Warranty	2 years
Package Includes	IP Wall Mounted Speaker  Quick Start Guide

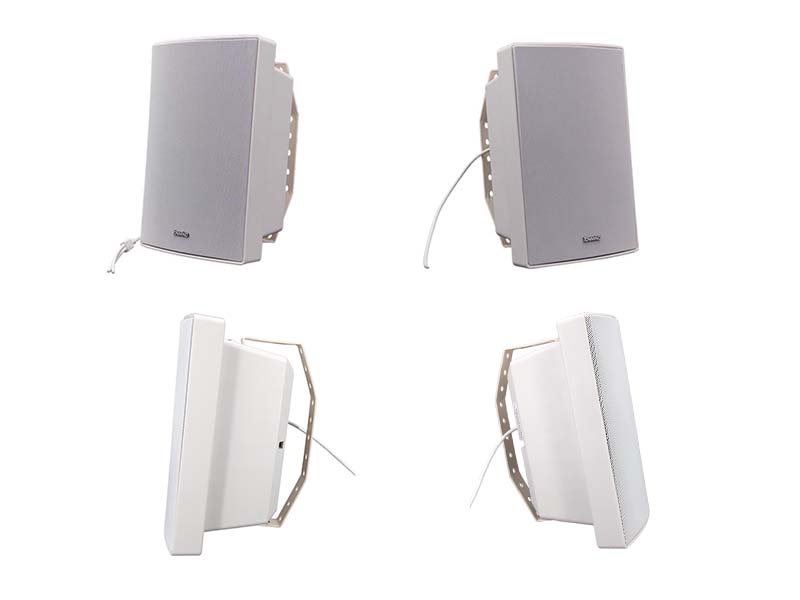

Product Image
