15W IP Ceiling Speaker with MIC
SIP-S01M, Ceiling, Indoor, 15W, Built-in MIC, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
Price：Request Pricing
Category：IP Speaker, PA System, Product
86+13823702426
SIP-S01M, Ceiling, Indoor, 15W, Built-in MIC, SIP & ONVIF Compatibility, HTTP API, Pre-recorded Messages, 48K OPUS Audio Codec, HD Broadcast
- Item NO.:SIP-S01M
- Order(MOQ):1
- Payment:T/T,Western Union, Paypal
- Product Origin:China
- Color:White
- Lead Time：1 Week
- Weight：1000
Product Description

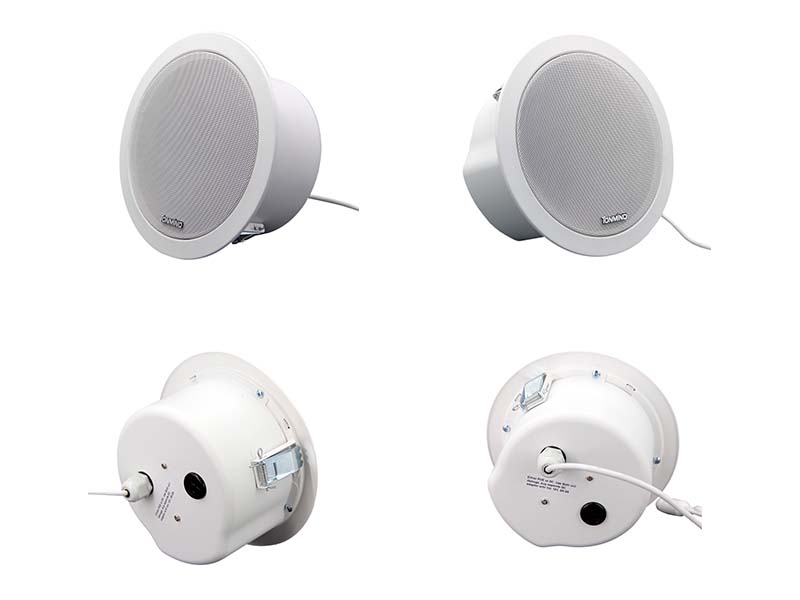

The IP Ceiling Speaker SIP-S01M is smooth design, which makes it nicely blending with its surroundings. It’s easy to mount flush with a ceiling, which is perfect for installation in school, offices, stores and hospitals. With built-in MIC, it can support two-way intercom communication. It’s compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply. Besides, users can apply Tonmind audio management software, Tonmind Audio Manager, Tonmind PA System Lite, Tonmind PA System Pro for easy and efficient control.
SIP Ceiling Speaker Feature
• Two-way intercom communication
• Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
• Compatible with IP Camera VMS/NVR via ONVIF
• Support Pre-recorded messages
• Support HTTP API for alarm in transmit
• 48K OPUS Audio Codec, AEC, AGC, ANR
• 15W amplifier, PoE Power Supply
Specification
| Audio | |
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| MIC | |
| Built-in MIC | Yes |
| Speaker | |
| Max SPL | 96dB |
| Frequency Response | 100Hz ~ 18KHz |
| Frequency Range | 500-2KHZ +-10dB 400-12KHZ +-20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support SIP protocol for intergration with VoIP systimes, intergrated with SIP/PBX.Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR.Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur).Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
| Amplifier | |
| Amplifier | Built-in 15W Amplifier |
| General | |
| Material | Metal |
| Rate Power | 15W |
| Power Supply | PoE or DC 12V |
| Installation | In Ceiling |
| Dimensions | 200 x 90 mm |
| Weight | 1 KG |
| Languages | English |
| Warranty | 2 years |
| Package Includes | Network Ceiling Speaker Quick Start Guide |

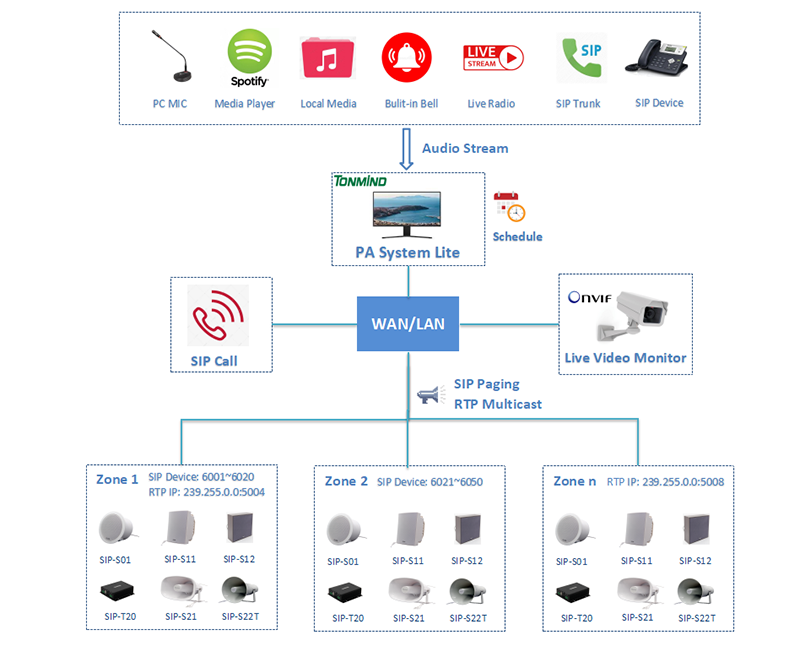

Software Diagram
